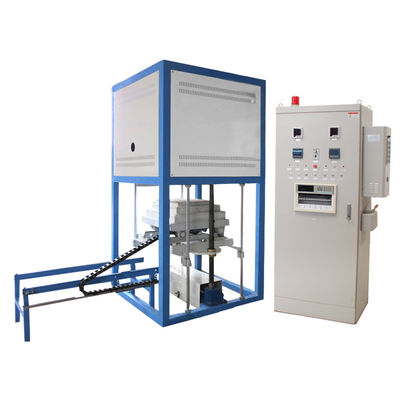

1700℃ Ceramic Sintering High Temperature Electric Lifting Furnace 64L

Product Overview

Main Features

• TMax 1700°C
• Carbon steel double air-cooled housing,reduce surface temperture
• Round chamber,1850# Polycrystalline ceramic fiber raw material,CNC carved,high temperature resistance,efficient energy saving
• Bottom electric lifting, loading and unloading freely,high production efficiency.Bottom tray is made of three-stage alumina tiles,good load-bearing performance
• U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field
• 7" touch screen controller with USB adapter
• Type B Thermocouple,long service life
• Heating rate:0℃-10℃/min adjustable
• Smart 30-stage programmable automatic temperature control,high temperature control accuracy
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1700°C Ceramic Sintering High Temperature Electric Lifting Furnace

• PE L64/17 Ceramic Sintering High Temperature Electric Lifting Furnace consists of four parts: furnace body,lifting system, temperature control system and air cooling system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
• Siemens electrical components, long service life
• Export quality, ISO,CE certified.

1700°C Ceramic Sintering High Temperature Electric Lifting Furnace,Chamber.

• Chamber lining uses 1850# Polycrystalline ceramic fiber raw material,CNC carved,round chamber,chamber walls tight coupling.
• U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field,TMax 1700°C.
• Durable B-type thermocouple,long service life.

Heating Programs for 1700°C Elevator Furnace

• Yudian PID temperature controller,programmable 30 segments, heating rate 1-10C/min freely adjusted
• Good thermal insualtion, natural cooling, cooling down gently
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
• Please do not inject flammable, explosive or highly corrosive gases.
• For safety, please place the furnace in a ventilated place.
• The sample should be placed in a crucible, not directly in the chamber.
