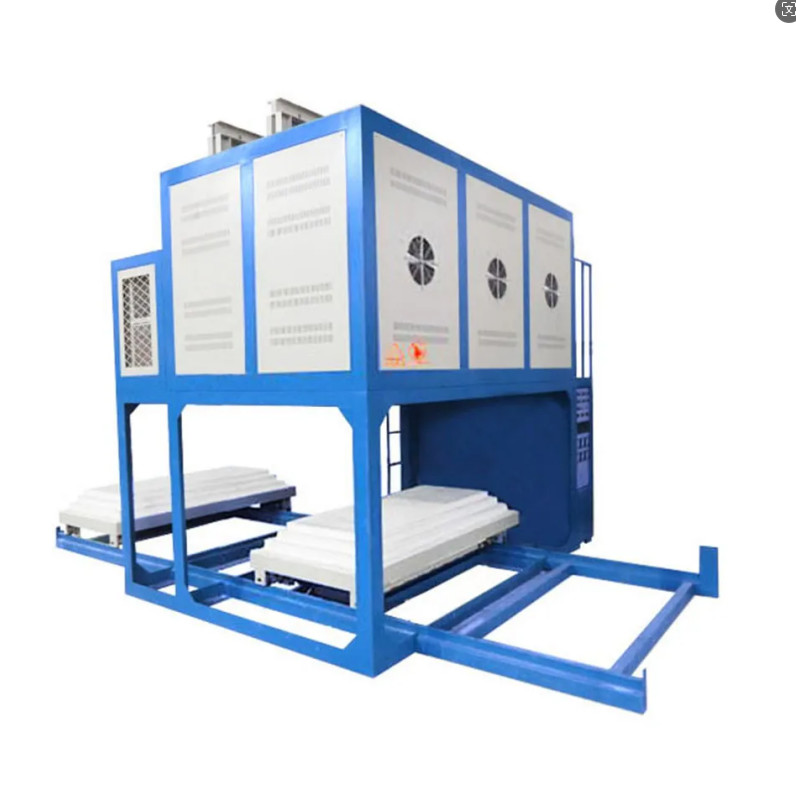

Elevator Hearth Furnace For Ceramic Sintering 1750°C 16x16x16″ 64L

Elevator Hearth Furnace for Ceramic Sintering

Overview

Elevator hearth furnace, also called as bottom loading furnace or top hat furnace. Features stable electrically driven bottom loading system, easy for sample loading and unloading, all sides heating achieves an outstanding temperature uniformity. Constructed dual steel housing, stability and low temperature leakage, round vertical chamber lined with 1850# high alumina ceramic fiber. Our laboratory standard elevator hearth furnace covers Tmax 1750 degrees Celsius with capacities up to 96 liters, which is suitable for multiple heat treatments such as calcination, sintering and other processes on new materials, ceramics in labs and industrial. Programtherm supplies a variety of elevator furnaces, and programtherm elevator furnace makes your heat treatment more successful.

Main Features

• Tmax 1700 °C
• Bottom loading, elevator hearth, top hat furnace
• Steel structure with fan cooling for low surface temperature
• Electric lifting bottom, available four sides loading
• Bottom heating protected by a 3-step alumina tiles
• Fiber-insulated chamber with MoSi2 rods heating from four sides, which ensures maximum temperature stability and uniformity
• 7″ touchscreen controller with USB adaptor
• Long life type B thermocouple
• CE certified, standard

Safety Measures

• Built-in Ammeter and dual Voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down elevator hearth furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

Overview for Elevator Hearth Furnace for Ceramic Sintering 1750°C

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
