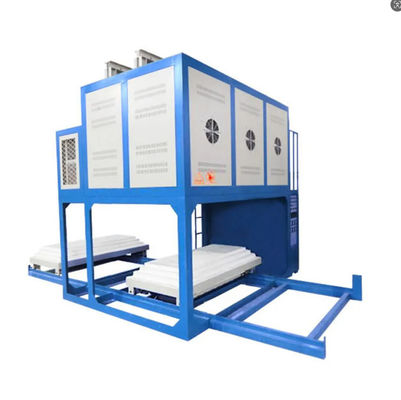

PE L27/17 is a elevator hearth furnace, builds with dual steel housing, electrically driven bottom loading system, easy for sample loading and unloading. 7″ temperature control panel, Powerful MoSi2 heating rods heat from four sides ensure an outstanding temperature uniformity. Tmax 1700°C. Bottom loading furnace is suitable for multiple heat treatments such as calcination, sintering and other processes on new materials, ceramics in labs and industrial.Programtherm supplies a variety of elevator furnaces, and programtherm elevator furnace makes your heat treatment more successful.
Overview for Elevator Hearth Furnace for Ceramic Sintering 1750°C
| Model No. | PE L64/17 |
| Chamber size (DxWxH) | 400x400x400mm (16x16x16″) Capacity: 64 Liters |
| Power supply | 21KW AC380-415V, 50/60Hz, three phases |
| Working temperature |
Tmax 1750°C (3182°F) |
| Temperature controller |
Yudian PID controller |
| Heating rate | ≤10°C /min |
| Thermocouple | B type |
| Chamber lining | Mitsubishi Raw Material high alumina 1850# fiber board |
| Electronic components | Siemens maker air switch, AC contactor, SSR Relay etc |
| Heating element | MoSi2 (U shape, 12pcs) |
| Shipping info | Weight: 670 KGS W1710xL1830xH1850mm |
| Compliance | CE, ISO |
| Warranty | 18 months limited warranty with lifetime technical support |
| Item name | PE L45/17 | PE L96/17 | PE L150/17 |
| Inner size (DxWxH) | 500x300x300mm | 600x400x400mm | 60x500x500mm |
| Capacity | 45 L | 96 L | 150 L |
| Power | 18 KW | 25 KW | 30 KW |
| Weight | 565 KGS | 775 KGS | 1200 KGS |
