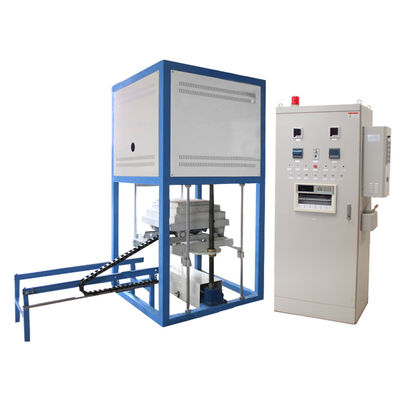

PE D300/17 is a bottom loading furnace, builds with dual steel housing, electrically driven bottom loading system, easy for sample loading and unloading. 7″ temperature control panel, Powerful MoSi2 heating rods heats from four sides ensure an outstanding temperature uniformity. Tmax 1700°C. Bottom loading furnace is suitable for multiple heat treatments such as calcination, sintering and other processes on new materials, ceramics in labs and industrial.Programtherm supplies a variety of bottom loading furnaces, and programtherm bottom loading furnace makes your heat treatment more successful.
Overview for Elevator Hearth Furnace for Ceramic Sintering 17000°C
| Model No. | PE D300/17 |
| Chamber size (DxWxH) | 300x300x300mm (12x12x12″) Capacity: 27 Liters |
| Power supply | 8KW AC380-415V, 50/60Hz, three phases |
| Working temperature |
Tmax 1700°C (3092°F) |
| Temperature controller |
Yudian PID controller |
| Heating rate | ≤10°C /min |
| Thermocouple | B type |
| Chamber lining | Mitsubishi Raw Material high alumina 1800# fiber board |
| Electronic components | Siemens maker air switch, AC contactor, SSR Relay etc |
| Heating element | MoSi2 (U shape, 12pcs) |
| Shipping info | Weight: 310 kgs W710xL830xH1100mm |
| Compliance | CE, ISO |
| Warranty | 18 months limited warranty with lifetime technical support |
| Item name | PE D100/17 | PE D150/17 | PE D200/17 |
| Inner size (DxWxH) | 100x100x100mm | 150x150x150mm | 200x200x200mm |
| Capacity | 1 L | 3 L | 8 L |
| Power | 3 KW | 4 KW | 5 KW |
| Furnace dimensions (LxWxH) | 720x670x1100mm | 800x750x1250mm | 975x1050x1350mm |
| Weight | 565 KGS | 175 KGS | 260 KGS |
