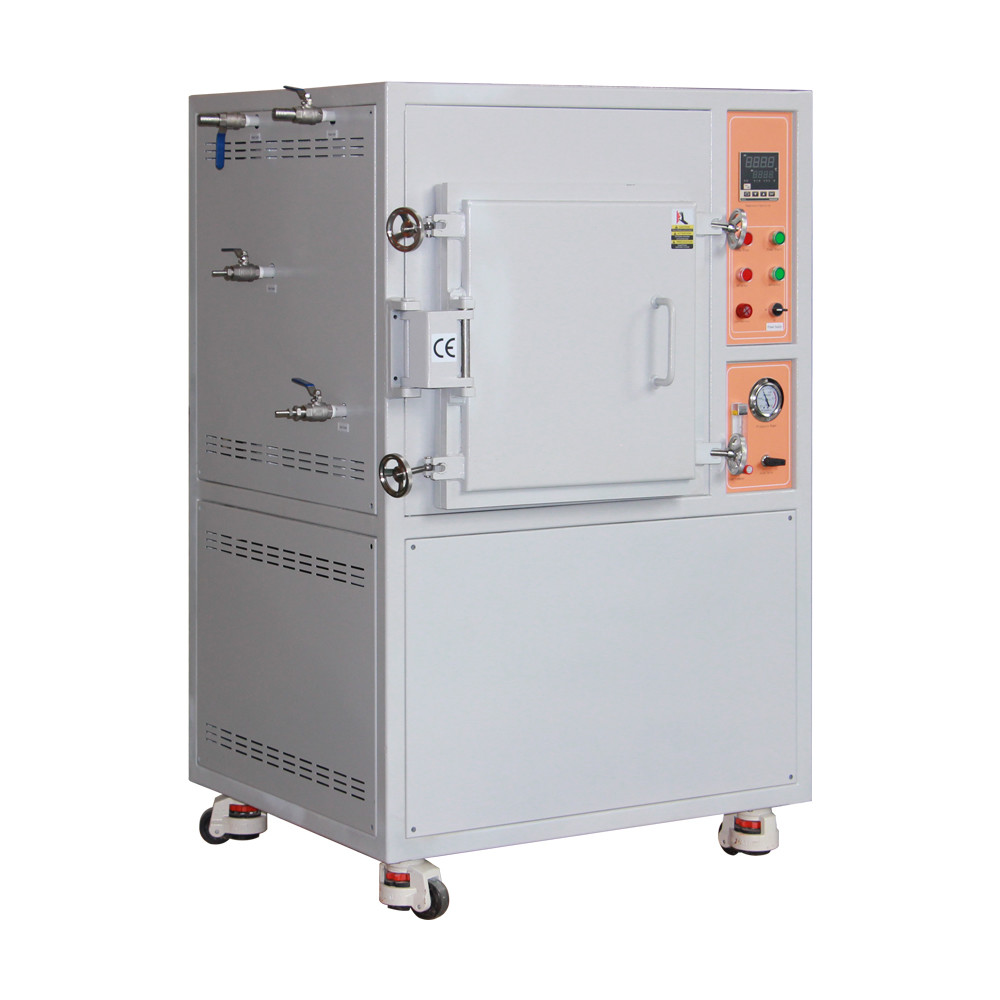

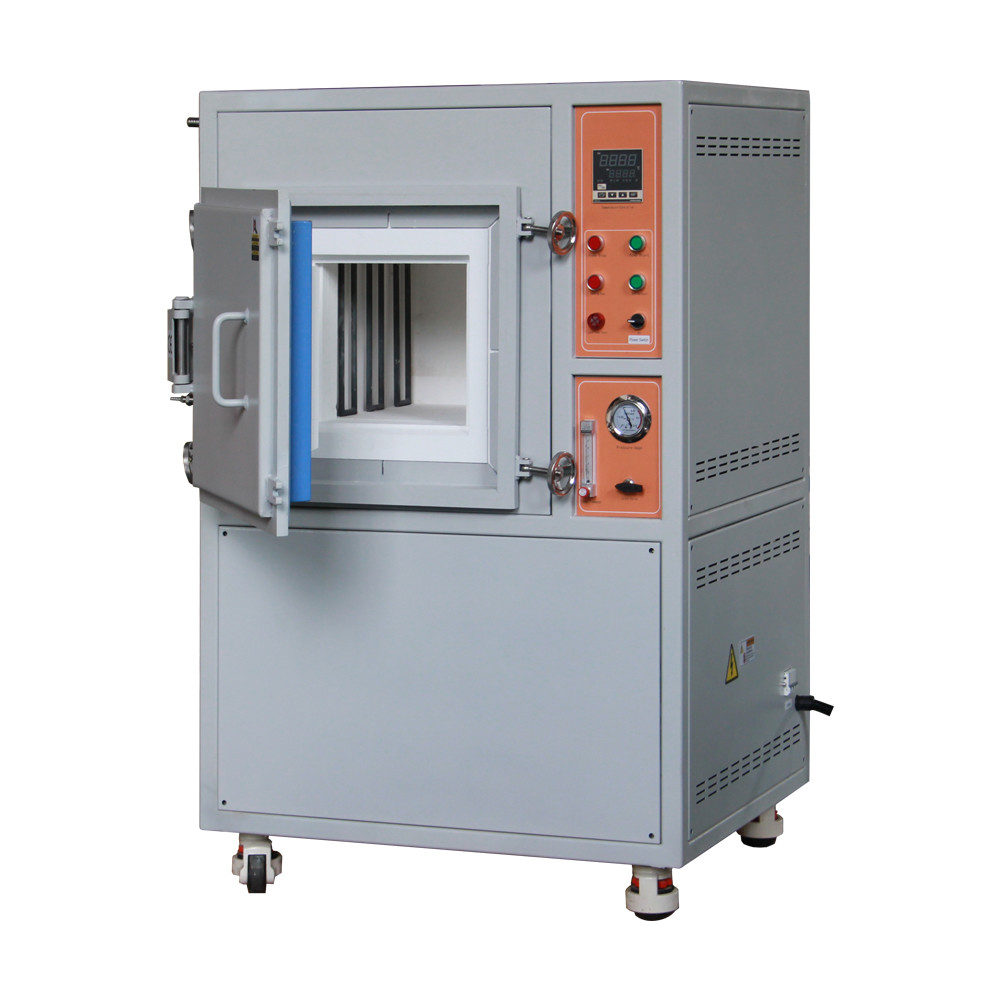

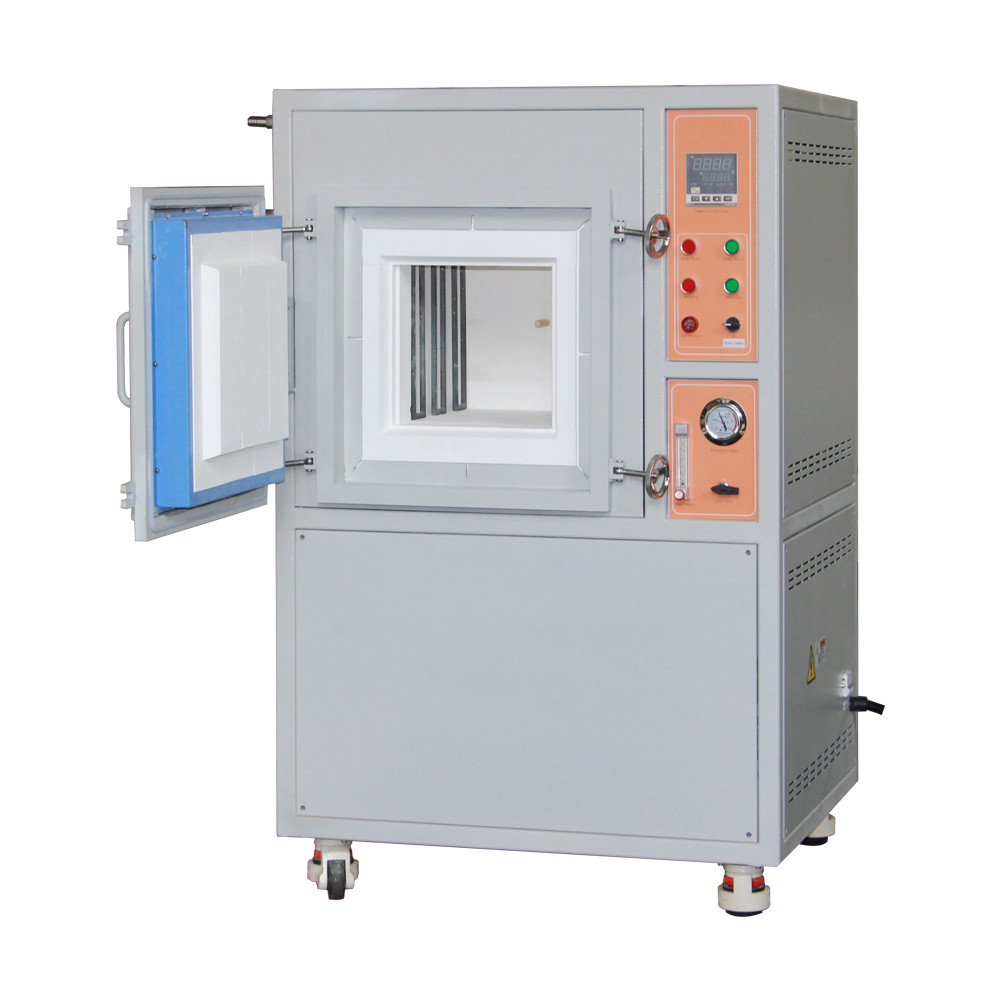

The Controlled Atmosphere Furnace is a high temperature atmosphere sintering furnace that provides precise temperature control, fast heating rates, and precise control of the atmosphere. It is designed for use in various applications including sintering and atmosphere processing. It offers a temperature range of RT-1400°C and a heating rate of 0-20°C per minute. The furnace is equipped with SiC rods for heating and can control the atmosphere by using air, nitrogen, hydrogen, argon, or other inert gases. This atmosphere sintering furnace is a reliable and efficient solution for a wide range of industrial applications.
| Product Name | Controlled Atmosphere Furnace |
|---|---|
| Insulation Material | 1600# Ceramic Fiber Board |
| Safety Protection | Over-temperature Protection |
| Heating Rate | 0.1-20°C/min |
| Heating Element | SiC Rods |
| Control System | Programmable 32 Segments |
| Atmosphere | Air, Nitrogen, Hydrogen, Argon, Etc. |
| Chamber Size | 36 Liters |
| Temperature Range | RT-1400°C |
| Power Supply | AC220V/50Hz |
The Programtherm PA L36/14 Controlled Atmosphere Furnace is a CE certified product packaged in Polywood and provides over-temperature protection and efficient heating of up to 0.1-20°C/min. It is an ideal choice for those needing to precisely control the atmosphere and temperature for their application. This Controlled Atmosphere Furnace offers a high-quality insulated chamber with an interior made from 1600# Ceramic Fiber Board. It can be used with a range of atmospheres such as Air, Nitrogen, Hydrogen, and Argon, and powered by AC220V/50Hz.
Features:
Controlled Atmosphere Furnace offers technical support and services for optimal operation of your furnace.
Our technical team provides you with furnace-related engineering services, such as:
We also provide spare parts and furnace components to ensure your furnace is running at its best.
For any queries, please do not hesitate to contact us. We are here to help.
The Controlled Atmosphere Furnace (CAF) must be adequately packaged and shipped to ensure its safe arrival at your destination.
