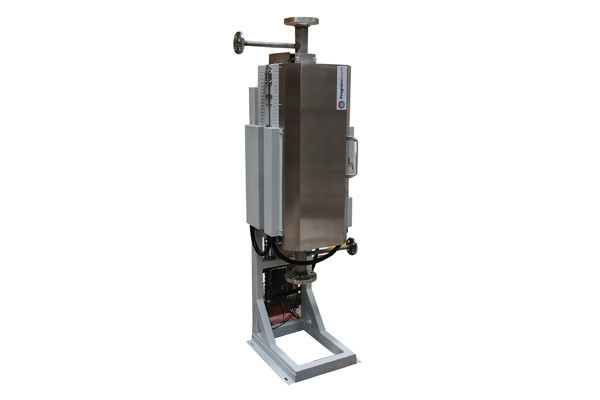

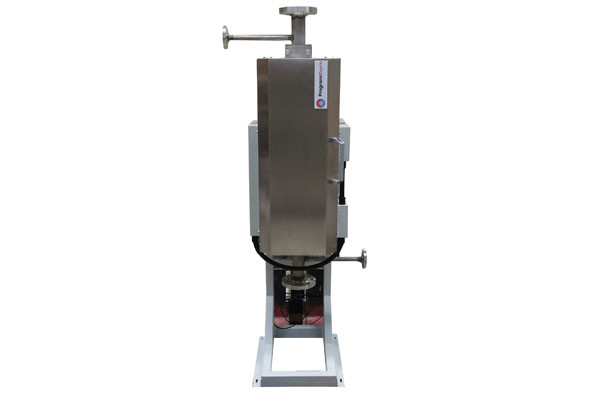

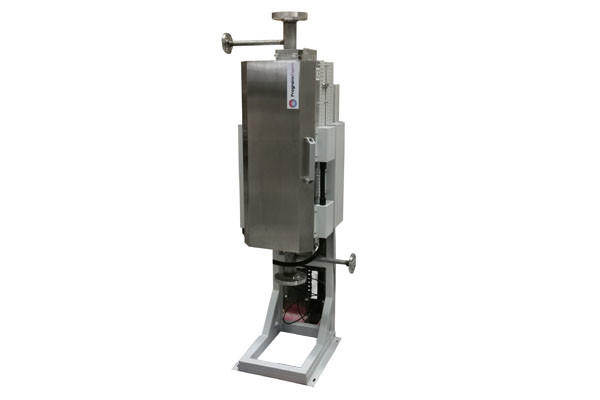

1200C Vertical Dual Zones Tube Furnace With OD60mm Metal Tube

Product Overview

PT D60/600/12/2 is a 1200C Vertical Dual zones Tube Furnace with OD60mm Metal Tube. The furnace is designed with two heating zones with embedded alloy coil wire. The furnace tube is made of 310SS stainless steel tube with built in stirring blade, the effective loading volume is 10L. Especially suitable for the heat treatment process of granular materials, such as calcining ceramic oxide and graphite powder etc.

Main Features

• Tmax 1200℃
• Dual zones, verticable tube furnace

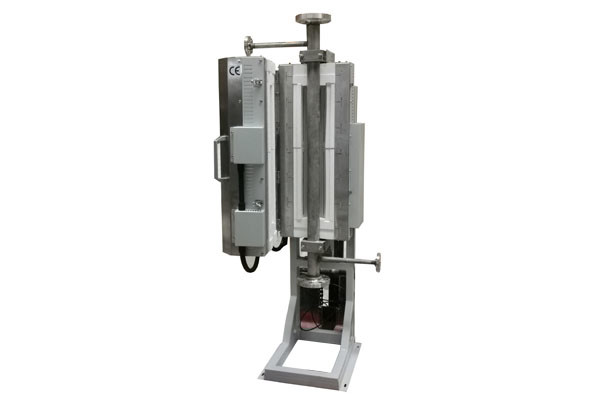

• Manual furnace door with hydraulic rods assitance
• Ceramic fiber insulation chamber with embedded heating wire
• 310SS tube with built in stirring blade, loading volume 10L
• Equip air cooling on both tube ends
• SS304 sealing flange with gas inlet and outlet
• N type thermocouple
• Digital PID controller with programmable 30 segments
• Dual flanges support provides better sealing and longer tube life
• CE certified

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1200C Vertical Dual zones Tube Furnace with OD60mm Metal Tube

Heating programs for 1200°C large verticable rotary tube furnace

• Programmable 32 segments, heating rate 1-20C/min freely adjusted
• Good thermal insualtion, natural cooling, cooling down gently
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Quartz tube pressure should be lower 0.02MPa
• Gas source should equip the pressure reducing valve
• Before filling reduction gases like H2, should pump the air out of the tube
• When filling gases from gas inlet in the tube, should make sure the gas outlet valve open
