Multi Three Heating Zones High Temperature Tube Furnace 1200C Long Life

Product Overview for Quartz Tube Furnace

1200C series multi-zone tube furnace PT D120/900/12/3 is a long, and split-able three-zone tube furnaces with tubes up to 100mm O.D capable of quickly heating up to 1200°C. The multiple zones also enable the user to create different thermal gradients by varying the temperature of the three zones. The furnace includes one fused quartz tube, one pair of vacuum sealing flanges with a pressure gauge & a ball valve for immediate use. Three-30 segments of temperature controllers are installed with a N-type thermalcouple. Microprocessor-based self-tuning PID control provides excellent temperature control without overshooting along with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres

Main Features

• Tmax 1200 °C
• Electric heated, 3 heating zones, Splitable, vacuum tube furnace
• Multiple atmosphere processes in a single cycle are available
• Max Vacuum level achieve 10E-5 torr worked with molecular pump
• Fiber-insulated chamber with all sides embeded heating wires ensure uniform temperature
• Shimaden PID temperature controller with programmable 32 segments
• SS304 vacuum sealing flanges with valves and pressure meter included
• Dual flanges support provides better sealing and longer tube life
• Split tube furnace chamber for fast and easy tube access
• Long life type N thermocouple
• CE certified, standard

Ramping, Dwelling, Cooling Curves for 1200 Series multi-zone tube furnaces

Temperature profile for three heating zone tube furnace at 800C

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

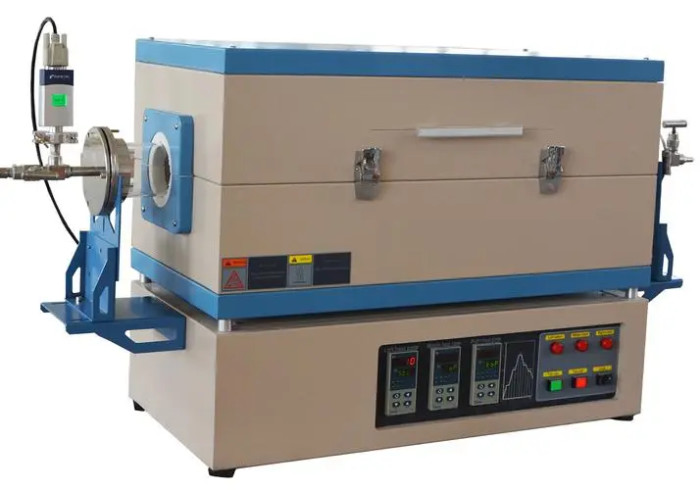

Front View for 3 heating zone Tube Furnace

Technical Specifications

Application Notes

• Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
• Laboratory tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
