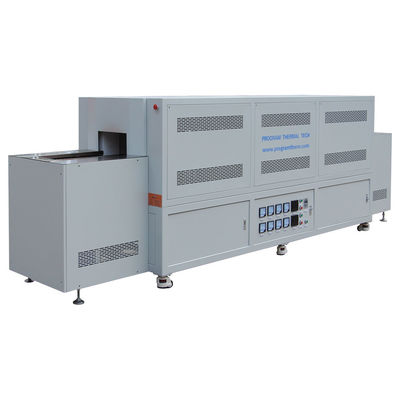

500C 120L Mesh Belt Drying Furnace With High Aluminum 1500 Ceramic Fiber Board Chamber

Product Overview

PHT L120/5 is a customized Mesh Belt Drying Furnace.Equipped with SS304 mesh belt.Carbon steel double housing,high aluminum 1500# ceramic fiber chamber,high temperature and corrosion resistant.SIC rod heated,two rows,upper and lower heating.Shimaden PID controller,programmable 32 segments,high temperature control accuracy.Suitable for continuous drying of metal, ceramic powder or small workpieces, usually to remove moisture or impurities.

Main Features

• Working temperature Rt-500℃ adjustable
• The interior is made of high-quality thermal insulation materials, good thermal insulation effect
• SS304 mesh belt,stable output and transmission of products
• Output: 40 kg/h
• Convey speed: 25-50 mm/min, stable and adjustable
• Fully automatic rotary operation, continuous production possible
• Two heating zones,heating length 2000mm
• SIC rod heated,TMax 600℃
• Heating rate:0℃-15°C / min adjustable
• Durable Type N Thermocouple
• Double over-temperature protection, safe and reliable power control
• Smart 32 segments programmable, equipped with LED screen
• SCR control, high temperature control accuracy, accuracy is +/-1℃
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

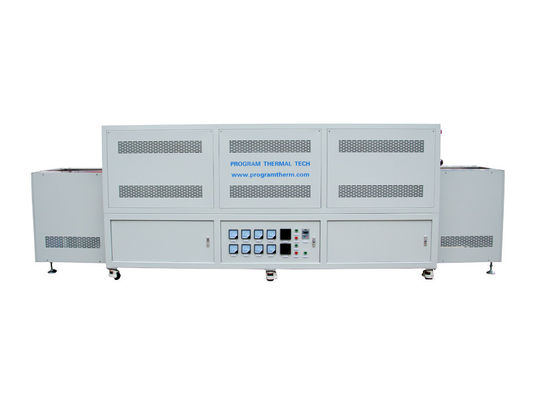

500℃ Mesh Belt Drying Furnace

• PHT L120/5 Mesh Belt Drying Furnace consists of three parts: furnace body, temperature control system and mesh belt transmission system
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components, long service life
• Export quality,ISO,CE certified.

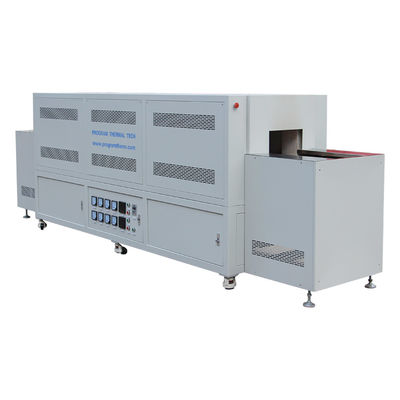

500℃ Mesh Belt Drying Furnace,Drying oven

• Chamber lining uses high aluminum 1500# ceramic fiber board,high temperature and corrosion resistant,uniform temperature field.
• SIC rod heated,TMax 600℃.
• Durable N-type thermocouple with long service life.

500℃ Mesh Belt Drying Furnace,Electrical control panel.

• Shimaden PID temperature controller,32 segments programmable, curve heating and set temperature rate,equipped with LED display
• SCR control, high temperature control accuracy, accuracy is +/-1℃
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function.
• With 485 communication interface (Optional)

Technical Specifications

Application Notes

• Small cracks may appear on the surface over extended use. A normal occurrence and can be repaired with alumina coating.
• A dedicated person must supervise and control the operation process, monitoring parameters like temp, humidity, and pressure.
• Raw materials should be tested, classified, screened, and adjusted for mesh belt furnace conditions to meet processing requirements.
• Staff must wear protective gear like glasses, masks, gloves when operating mesh belt furnace for safety.
• Please do not inject flammable, explosive or highly corrosive gases.
