High Temperature OD150mm Tube Furnace with Dual Heating Zones and Free Spare Parts

Product Overview for 1200C Tube Furnace

Two Zone Tube Furnace PT D150/600/12/2 features dual heating Zones, each zone controlled separately. Heating length 24″ Long ( 12″+12″), Microprocessor-based self-tuning PID provides excellent control with no overshooting and +/- 1 °C accuracy. Max vacuum level could be reached to 10E-5 torr with molecular vacuum pump. So the Dual Zone Tube Furnace is widely used in vacuum and/or atmosphere protection sintering, including calcining inorganic compounds and/or preparing Li-Ion battery cathode powders with better uniformity in multiple gas controlled / CVD up to 1200°C.

Main Features

• Tmax 1200°C
• Dual / Two Heating zone, Benchtop, Split, CVD Tube Furnace
• Fiber-insulated chamber with all sides heating wire ensure uniform temperature
• Multiple atmosphere processes in a single cycle are possible
• Max vacuum level 10E-5 torr
• Eurotherm PID Temperature Controller with programmable 32 segments
• Two heating zone ensure the tube furnace an improved temperature gradient, zones controlled separately
• Split chamber for fast and easy furnace tube access
• SS304 sealing flanges with valves and pressure meter
• CE standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

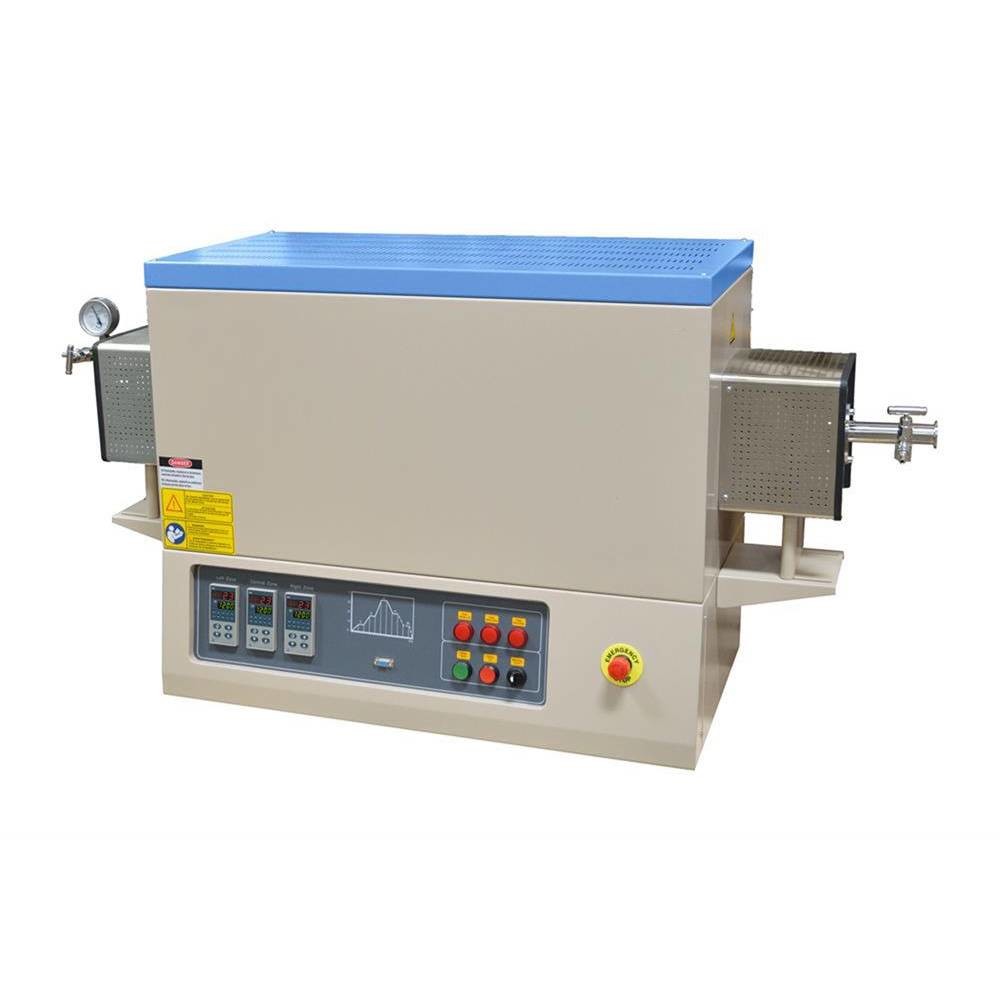

Front View for High Temperature Tube Furnace 1200 degree C

Technical Specifications

Application Notes

• Don’t fill any explosive gasses such as Hydrogen or Methane into the vacuum furnace tube without necessary safety controls and supervision.
• Vacuum Tube furnace with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
