1700C Rotary Tube Furnace OD80mm

High Temperature 1700C Rotary Tube Furnace

Product Overview for 1700C Rotary Tube Furnace

PTR D80/300/17 is a 1700 degree C rotary tube furnace, features single heating zones with length of 300mm, rotating speed could be adjusted. The tube furnace could be work with molecular vacuum pump reach vacuum level of max 10E-3 torr. It is mianly build for heat treatment of particulate materials continuous flowing at high temperatures.

Main Features

• Tmax 1700 °C
• Electric heated, Single zone, high temperature, vacuum tube furnace
• Dual steel structure, non-Split furnace chamber to protect minium heat loss
• Multiple atmosphere processes in a single cycle are available
• Max Vacuum level achieve 10E-3 torr worked with molecular pump
• Fiber-insulated chamber with powerful MoSi2 heating elemets ensure uniform temperature ensure uniform temperature
• Shimaden PID temperature controller with programmable 30 segments
• SS304 vacuum sealing flanges with valves and pressure meter included
• Dual flanges support provides better sealing and longer tube life
• Long life type B thermocouple
• CE certified, standard

Ramping, Dwelling, Cooling Curves for 1700 Series Tube Furnaces

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

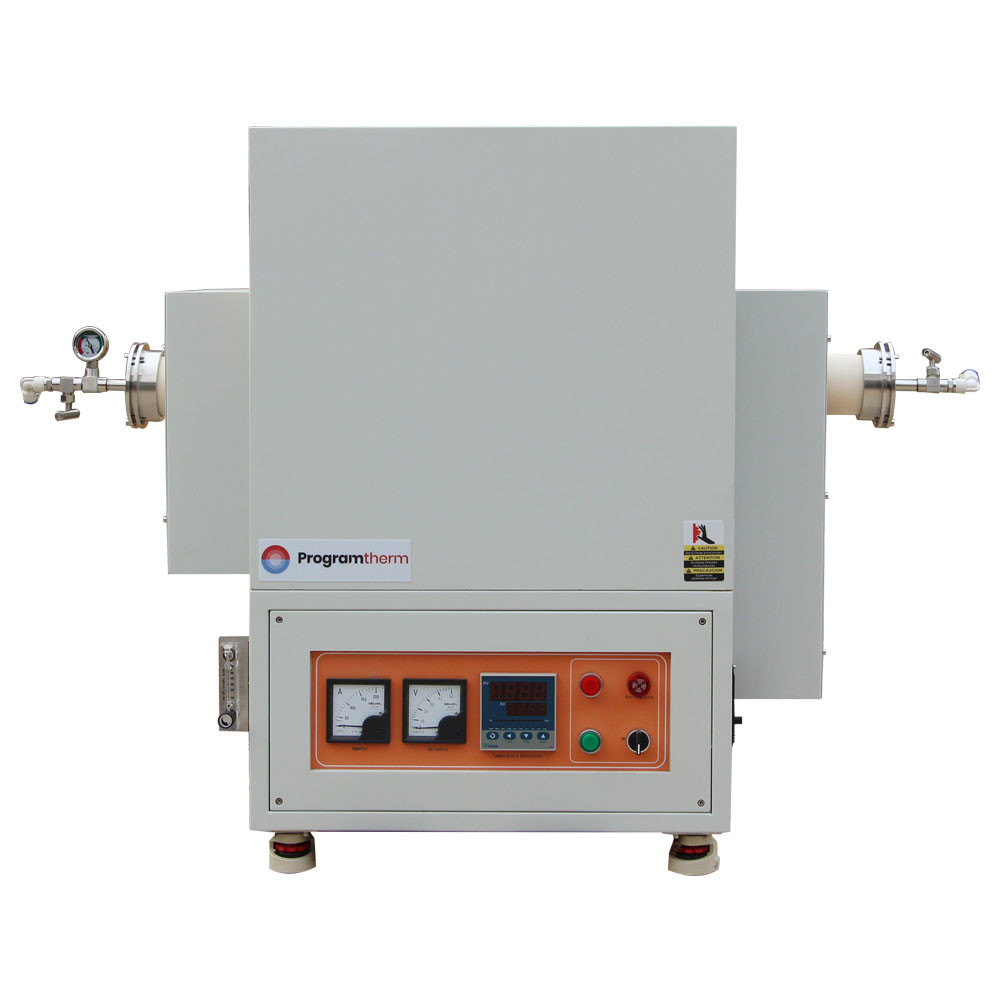

Front View for High Temperature Tube Furnace 1700 degree C

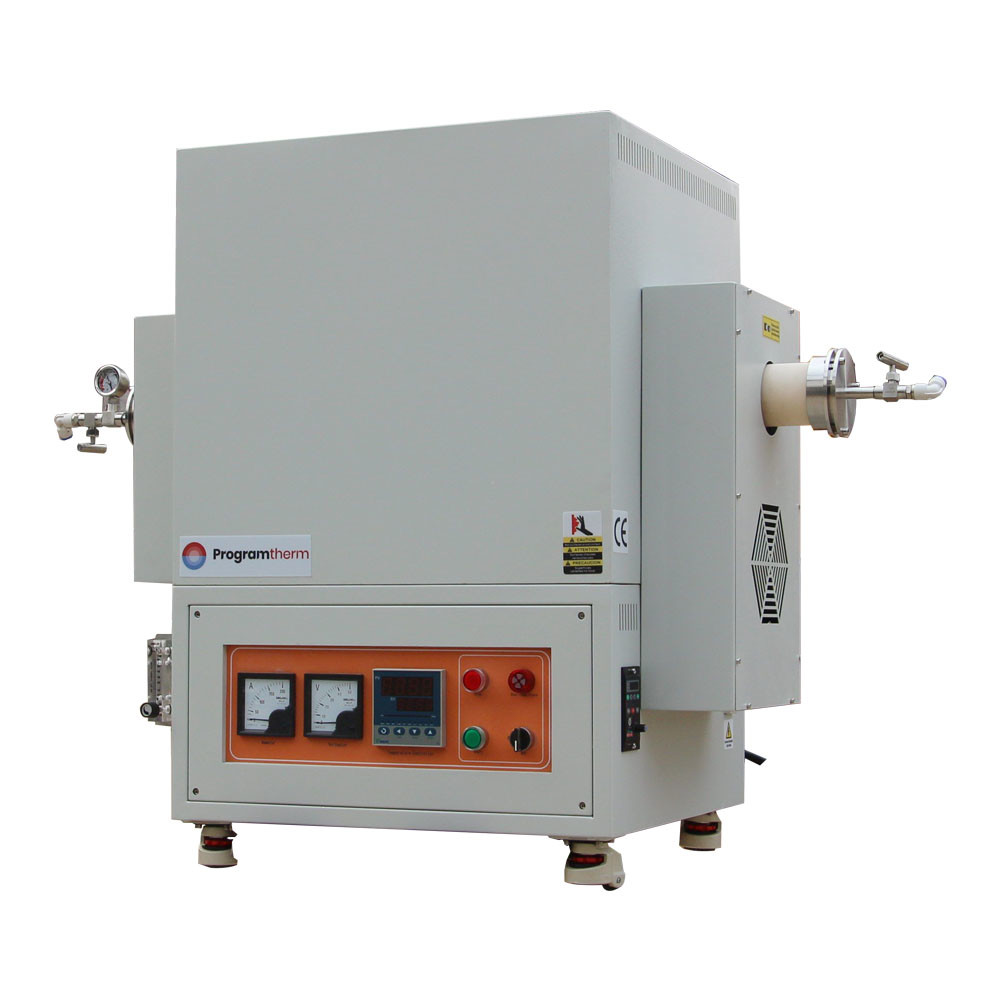

Side view for 1700 degree C High Temperature Tube Furnace

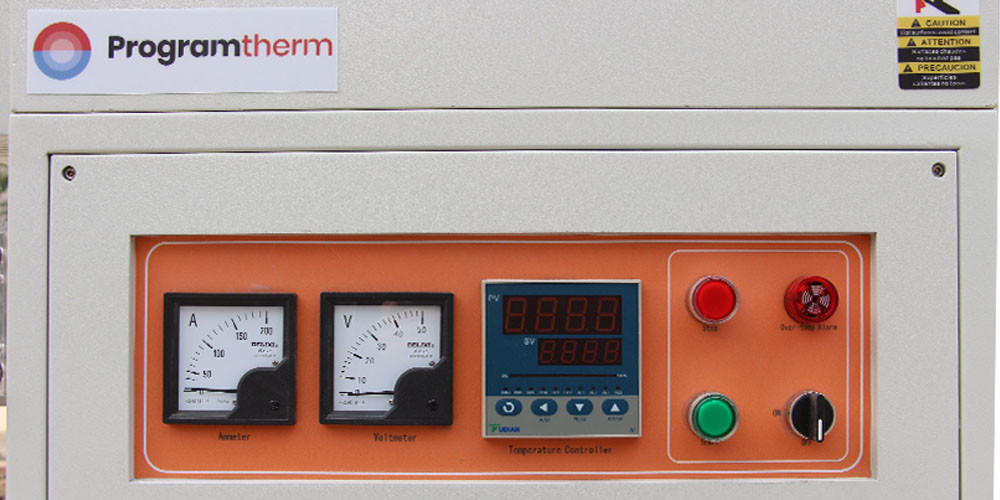

Detailsfor 1700C High Temperature Tube Furnace

Technical Specifications

Application Notes

• Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
• 1700C tube furnaces with alumina tube are designed for use under vacuum and low pressure; 0.2 bars / 3 psi / 0.02 MPa
• To minimize the cracking rate of the ceramic tubes, please change the position (mark four points on the tube) each batch
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
