OD60mm ID52mm Lab Tube Furnace 1200c Horizontal Tubular Furnace

Product Overview for Quartz Tube Furnace

1200C series tube furnace features splitable tube furnace with quartz tube and vacuum sealing flanges / valves, it is widely used in vacuum sintering, atmosphere protection sintering, vacuum film coating, CVD experiments and physical components testing for rare earth preparation, electronic lighting, crystal annealing, biological ceramics, electronic ceramics, special alloy, magnetic material, precision casting and metal heat treatment.


Main Features

• Tmax 1200 °C
• Electric heated, Single zone, Splitable, vacuum tube furnace
• Multiple atmosphere processes in a single cycle are available
• Max Vacuum level achieve 10E-5 torr worked with molecular pump
• Fiber-insulated chamber with all sides embeded heating wires ensure uniform temperature
• Shimaden PID temperature controller with programmable 32 segments
• SS304 vacuum sealing flanges with valves and pressure meter included
• Dual flanges support provides better sealing and longer tube life
• Split tube furnace chamber for fast and easy tube access
• Long life type N thermocouple
• CE certified, standard

Ramping, Dwelling, Cooling Curves for 1200 Series Laboratory Furnaces

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

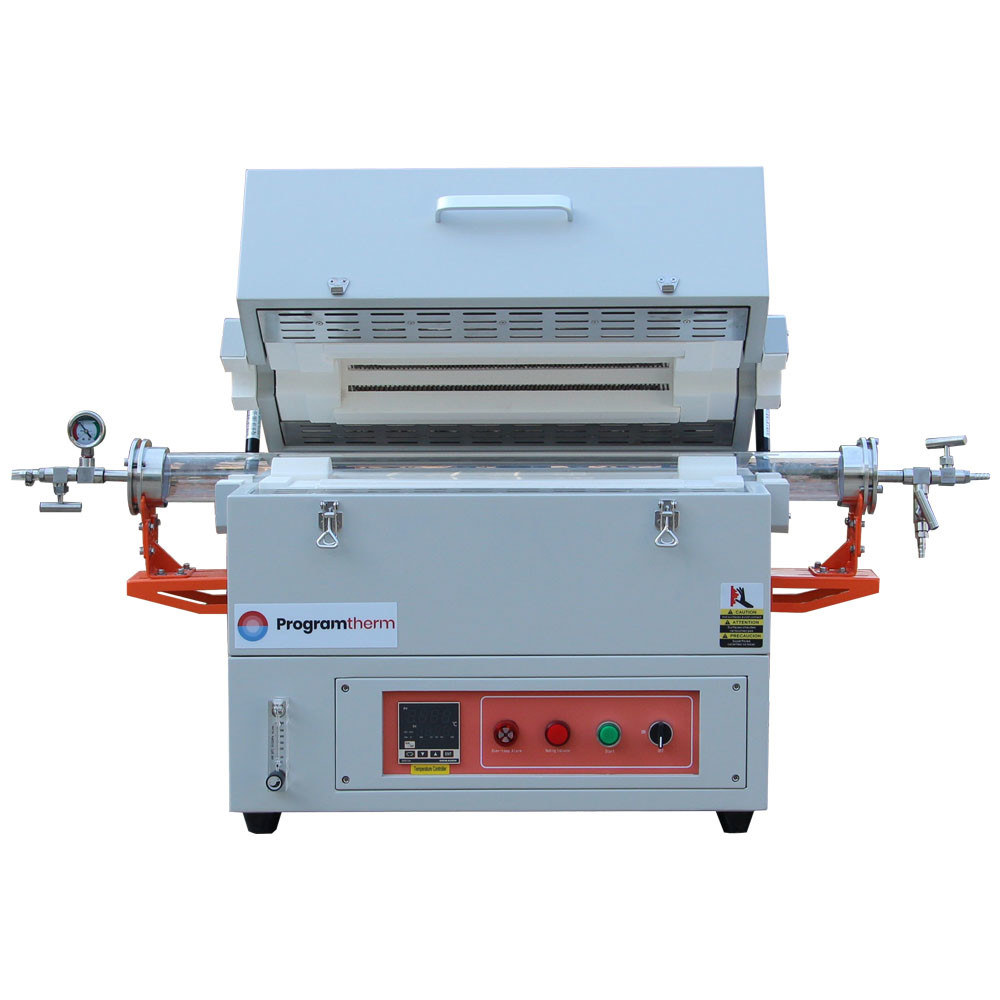

Front View for Quartz Split Tube Furnace 1200 degree C

Details for Quartz Split Tube Furnace 1200 degree C

Quartz Tube Furnace Connect with Rotary Vacuum Pump Unit

Technical Specifications

Application Notes

• Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
• Laboratory tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
