Rotary Tube Furnace up to 1700 degree C features single heating zones with length of 300mm

Rotary Tube Furnace up to 1700 degree C features single heating zones with length of 300mm
Features Gallery Product Description Request A Quote
Features
Specifications
Tube Material: Ceramic
Voltage: AC220V, 50/60Hz
Power: 6KW
Warranty: 2 Years
Heating Rate: 0-10℃/min
Heating Length: 300mm
Heating Element: MoSi2 Rods
Name: High Temperature Tube Furnace
Highlight:

Efficient Horizontal Tube Furnace

,

Efficient small tube furnace

,

small tube furnace PID Control

Basic Infomation
Place of Origin: China
Brand Name: ProgramTherm
Model Number: PTR D80/300/17
Payment & Shipping Terms
Product Description

Rotary Tube Furnace up to 1700 degree C

Product Description:

PTR D80/300/17 is a 1700 degree C rotary tube furnace, features single heating zones with length of 300mm, rotating speed could be adjusted. The tube furnace could be work with molecular vacuum pump reach vacuum level of max 10E-3 torr. It is mianly build for heat treatment of particulate materials continuous flowing at high temperatures.



Rotary Tube Furnace up to 1700 degree C features single heating zones with length of 300mm 0

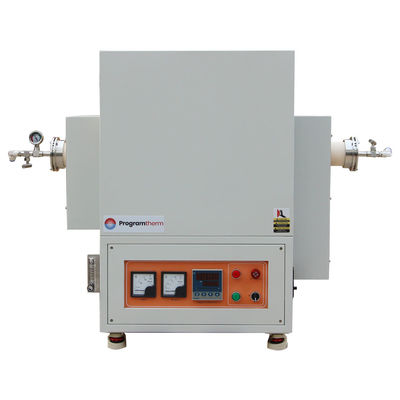

Front View for 1700C Rotary Tube Furnace

Rotary Tube Furnace up to 1700 degree C features single heating zones with length of 300mm 1


Main Features
  • Tmax 1700°C
  • Single zone, Horizontal, non-split, Rotary Tube Furnace
  • High alumina content 99.6% ceramic tube
  • Motor drived tube rotating speed 1-8 RPM
  • Max vacuum level 10E-3 torr
  • Multiple gas inlets and outlets
  • MoSi2 heating elements
  • SS304 sealing flanges and gauge included
  • Type B thermocouple
  • CE standard





Safety
    • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
    • Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to                         controller’s manual) or when the thermocouple is broken or malfunctions.
    • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
    • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Technical Parameters:



Model No. PTR D80/300/17
Heating zone Single heating zone
Zone length: 300mm /12″
Uniform temp zone: 180mm
Temperature uniformity +/- 5C
Power 6KW
AC220V, 50/60Hz, 1 phase
Working temperature Tmax 1700°C (3092°F)
Continuously 1600°C (2912°F)
Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°C
Heating rate ≤10°C / min
Thermocouple B type
Furnace tube AC220V/50HzMaterial: Ceramic
Size: OD80, length 900mm
Rotating rate 1-8 rpm variable
Vacuum flanges SS304 sealing flanges
Multiple gas inlets and outlets
Vacuum level Max 10E-3 torr with molecular pump
Chamber lining Mitsubishi Raw Material high alumina 1800# fiber board
Electronic components Schneider maker air switch, AC contactor, SSR Relay etc.
Heating element MoSi2 rods
Shipping info Weight: 200 kgs
W800xL2650xH1530mm
Compliance CE, ISO
Warranty One-year limited warranty with lifetime support







Application Notes
  • Don’t fill any explosive gasses such as Hydrogen or Methane into the Rotating furnace tube without necessary safety controls and supervision.
  • Rotary Tube furnace with ceramic tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating







Size Comparison



Item name PTR D40/300/17 PTR D60/300/17 PTR D100/300/17
Heating length 300mm 300mm 300mm
Tube size OD40xL1000mm OD60xL1000mm OD100xL1000mm
Power 1.8 KW 2.8 KW 3.0 KW
Weight 150 KGS 170 KGS 250 KGS
