OD300mm Multi Tube Furnace Horizontal Tube Furnace With Mixed Gas Channels

Product Overview for Rotary Tube Furnace

PTR D300/500/12 is a highly customized CE certified OD300mm large ROTARY and TILTING tube furnace (Tilting degree to 90) with complete vacuum sealing flanges. Furnace tube was build with 310SS tube. The furnace equips with a Hydraulic station for 90 degree tilting, rotating speed 0.1-5RPM, heating zone 500mm in length and controlled by a precision 40 segments of digital temperature controllers independently. The heating zone is heated by HRE Heating wires up to 1200°C. It is an excellent furnace to process powder materials, and also can be used for nano or film growth by CVD.


Main Features

• Tmax 1100 °C
• Rotating, vertical tilting tube furnace
• Dual steel structure, split furnace chamber easy access to the furnace tube
• Multiple atmosphere processes in a single cycle are available
• Fiber-insulated chamber with all round heating wires ensure uniform temperature
• Yokota Up35 intelligent temperature controller with programmable 40 segments
• SS310 tube with blades build inside for material stiring
• Long life type N thermocouple
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

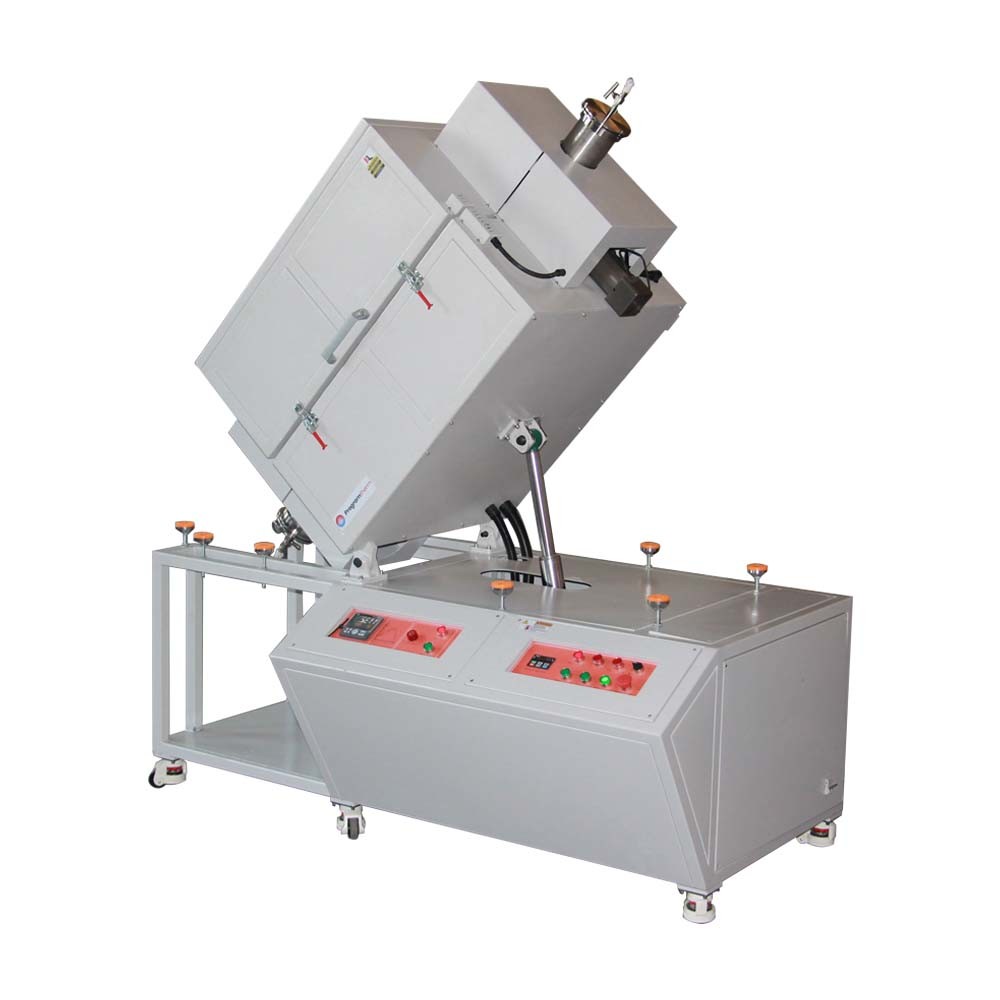

Front View for Rotary Tube Furnace 1200 degree C

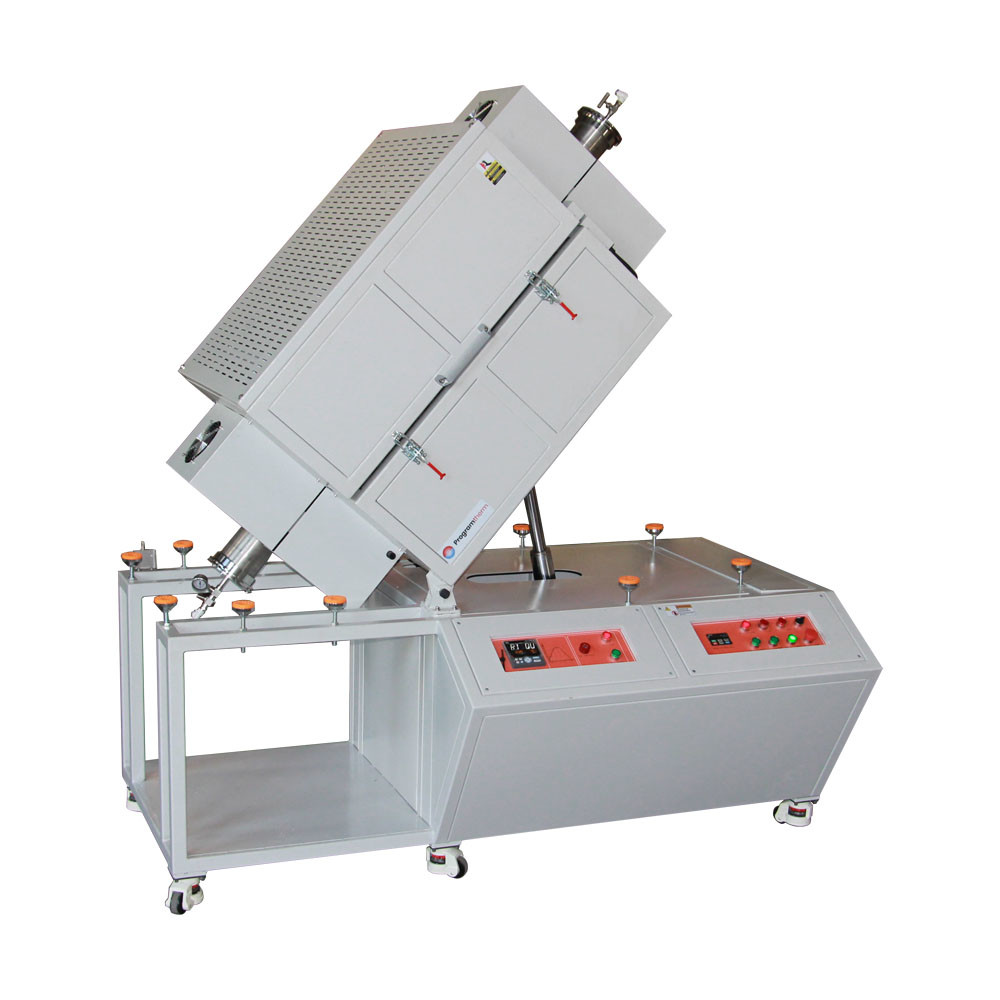

Side view for 1200C Rotary VERTICAL Tube Furnace

Technical Specifications

Application Notes

• Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
• 1700C tube furnaces with alumina tube are designed for use under vacuum and low pressure; 0.2 bars / 3 psi / 0.02 MPa
• To minimize the cracking rate of the ceramic tubes, please change the position (mark four points on the tube) each batch
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
