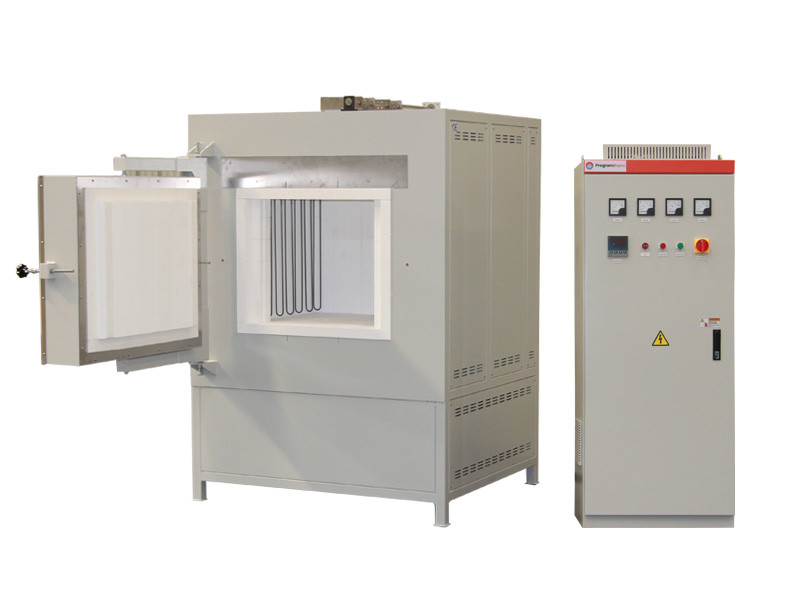

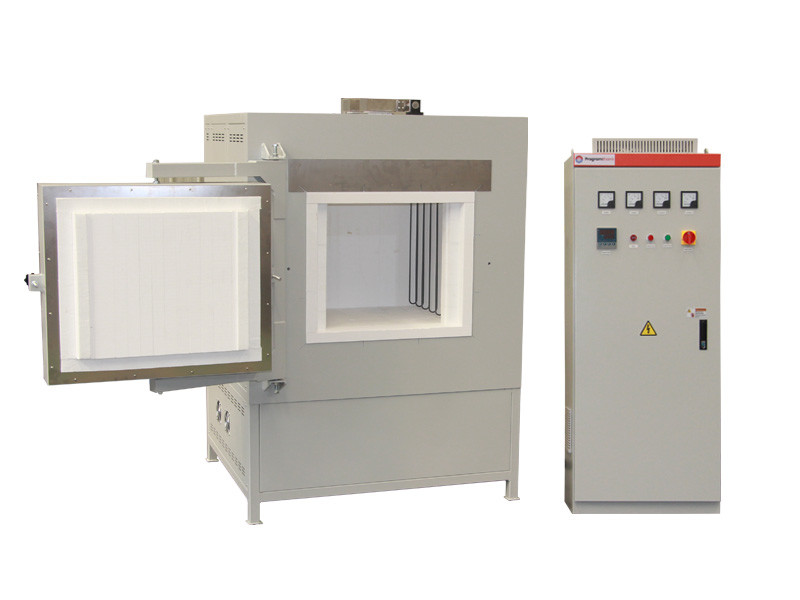

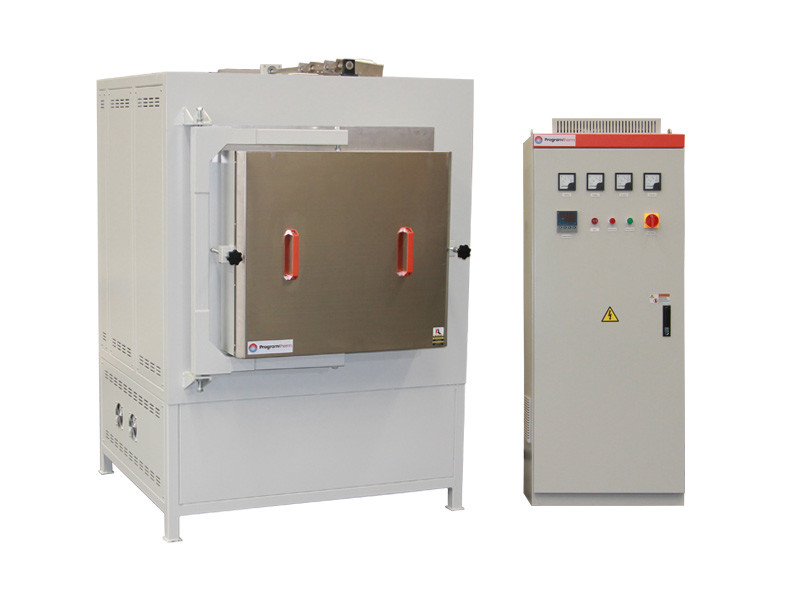

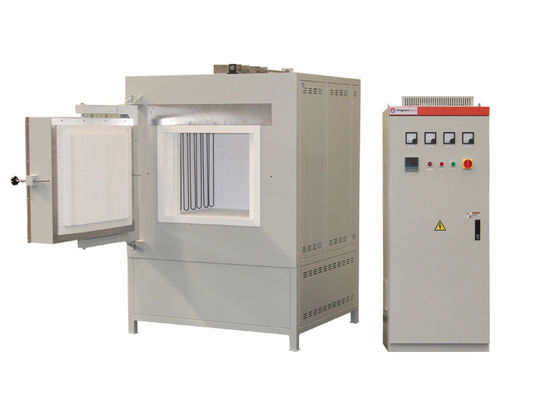

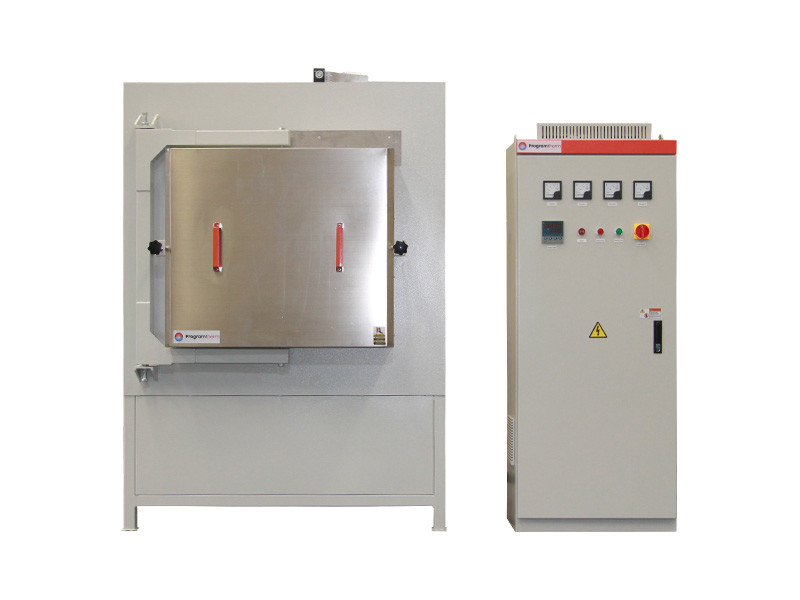

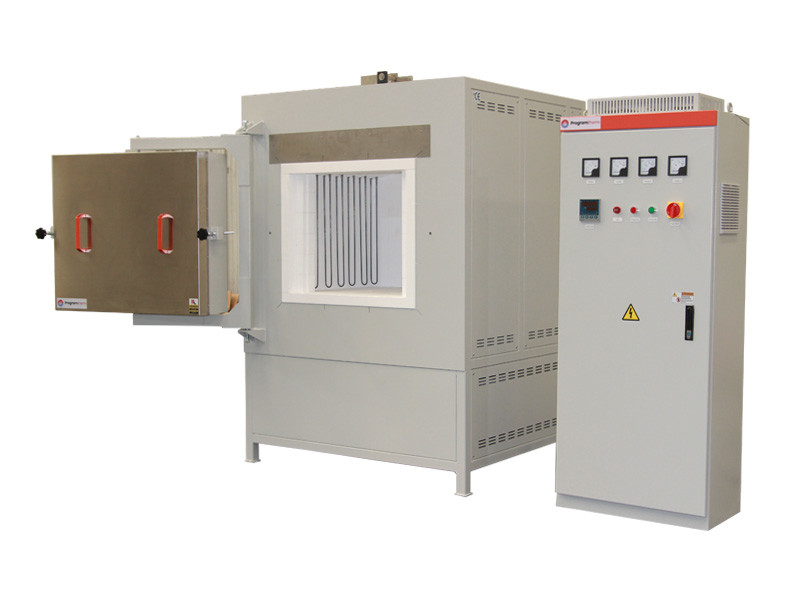

1800℃ 216L Chamber Furnace for sintering specialty ceramics

Product Overview

PC L216/18 is a customized industrial chamber furnace for sintering specialty ceramics. Double carbon steel with fan-cooling housing, high temperature and corrosion resistance.The composite ceramic structure chamber, good insulation performance.The heating element adopts new type U-shape MoSi2 rods, evenly arranged in the left and right sides of the chamber. Equip an exhaust piping system, furnace top opening with automatic chimney device. Temperature control system adopts split design, smart Yudian PID controller, 30 segments programmable,high temperature control accuracy. It is an ideal furnace for high-temperature sintering, metal annealing and quality inspection in colleges and universities, research institutes, industrial and mining enterprises.

Main Features

• TMax 1800℃
• Composite ceramic structure chamber, arched roof design, sturdy and durable
• New type U-shape MoSi2 rods heated, stable resistance, uniform temperature field
• Heating rate 0℃-10℃/min adjustable
• Equip an automatic chimney device on the top of the furnace
• Smart temperature control system 30 segments programmable
• Siemens electrical components, long service life
• B type thermocouple, long service life
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the chamber furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace chamber operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1800°C Chamber Furnace

• PC L216/18 Chamber Furnace consists of four parts: dual air-cooling carbon steel shell, ceramic chamber, automatic exhaust piping system and temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components,long service life.
• Export quality,ISO,CE certified.

1800°C Chamber Furnace, Chamber

• Chamber lining uses composite ceramic structure, the thickness of the side wall is 240mm, good insulation performance
• The top of the furnace adopts arched roof design, sturdy and durable
• The inner of the chamber is made of new ceramic material spliced together
• The chamber bottom adopts alumina bubble brick,CNC carved,excellent acid and alkali resistance
• New type U-shape MoSi2 rods heated, evenly arranged in the left and right sides of the chamber, stable resistance, uniform temperature field
• B type thermocouple, long service life

1800°C Chamber Furnace,Exhaust piping system

• Furnace top opening,automatic chimney device is installed on the top of the furnace
• Opens automatically when the furnace temperature falls below 200C

Temperature controller of 1800℃ Chamber furnace

• Temperature control system adopts split design.Consists of temperature control instrument,ammeter,voltmeter, function buttons and alarm indicators.
• Yudian PID temperature controller,30 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function
• With 485 communication interface (Optional)

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.
