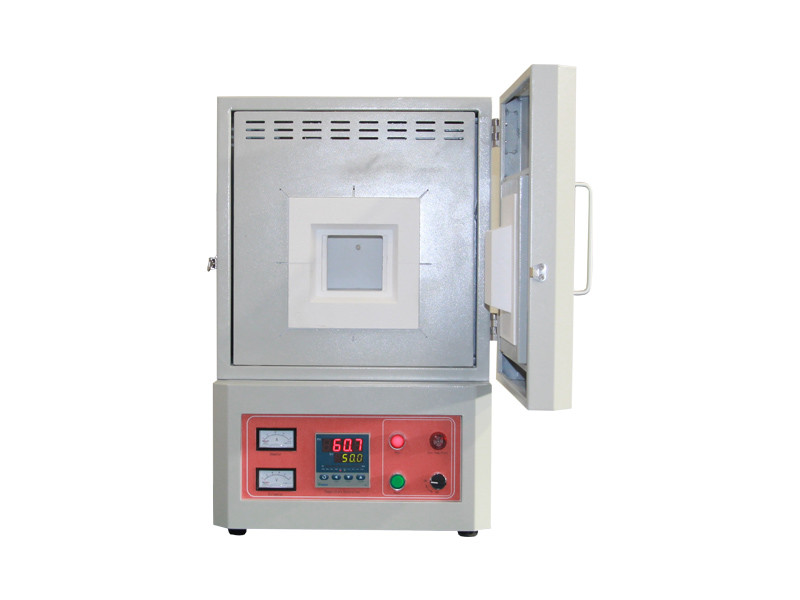

1700°C Small Benchtop High-temperature Muffle Furnace

Product Overview

PM L1/17 TMax 1700°C.Adopt Carbon steel air-cooling housing and beautiful powder electrostatic spraying process. High temperature and corrosion resistant.Chamber lining uses high aluminum 1800# ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving.Heating elemengt uses U-shape MoSi2 rod, uniform temperature field, fast heating and cooling.Temperature control system uses Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.It is an ideal furnace for high-temperature sintering, metal annealing, and quality inspection in colleges and universities, research institutes, and industrial and mining enterprises.

Main Features

• TMax 1700°C
• Carbon steel air-cooling housing,two-color high-quality epoxy powder electrostatic spraying,surface temperature below 45°C
• Integrated design, compact design, lightweight structure, saving space
• High aluminum 1800# ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving
• U-shape MoSi2 rod, heating on two sides, uniform temperature field
• Heating rate: 0℃-10℃/min adjustable
• Durable Type B Thermocouple
• Smart Yudian PID controller, 30 segments programmable,curve heating and set temperature rate
• Power off, over-temperature, thermocouple breaking and burnout protection
• Siemens electrical components, long service life
• Stable performance, low noise and high safety
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the mini muffle furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

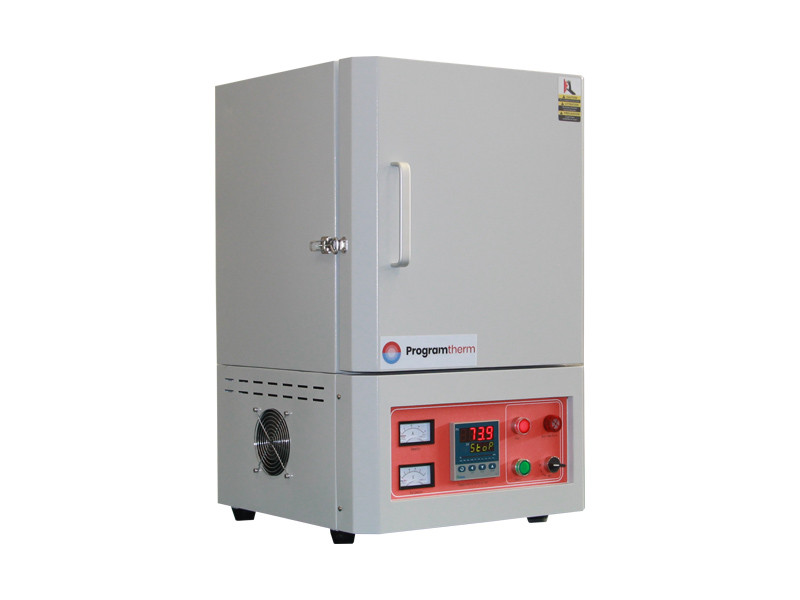

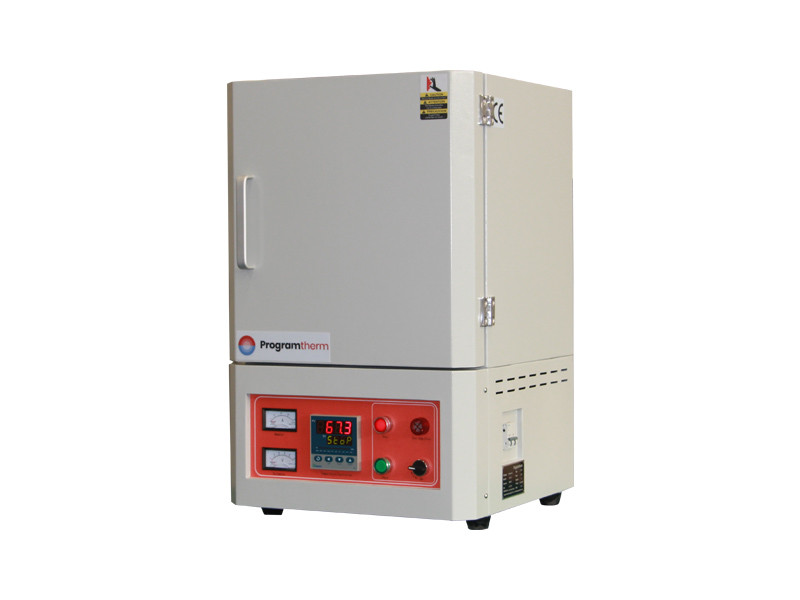

Small Benchtop High-temperature Muffle Furnace

• PM L1/17 Small Benchtop High-temperature Muffle Furnace consists of two parts: furnace body, temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components, reliable quality.
• Export quality, CE certified.

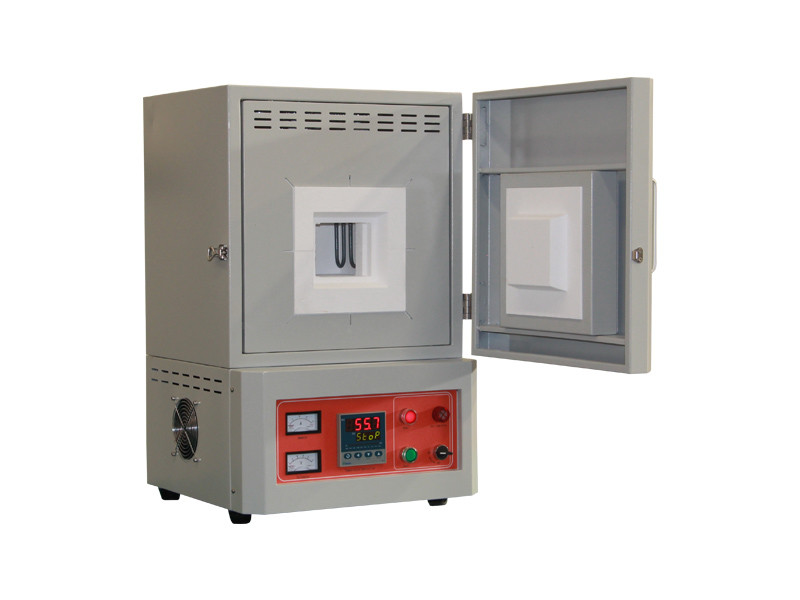

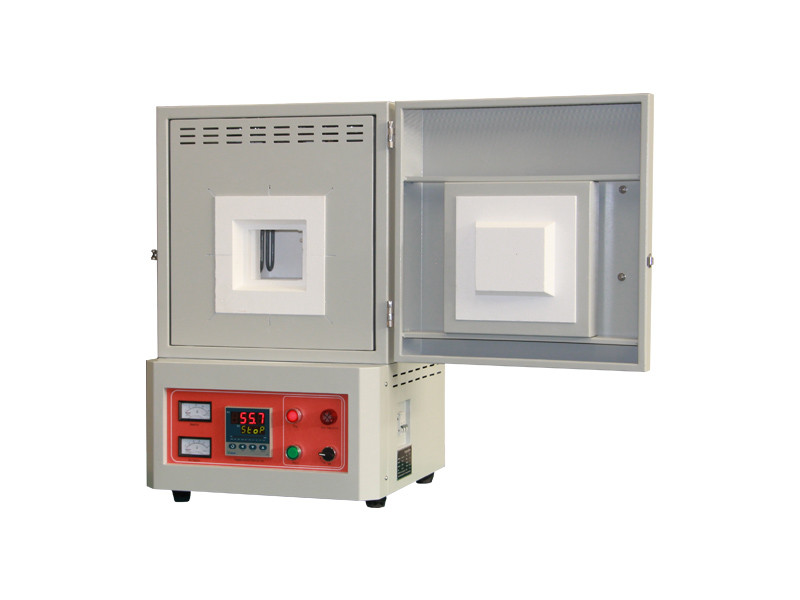

1700°C Small Benchtop High-temperature Muffle Furnace,Chamber

• Chamber lining uses 1800# ceramic fiber,CNC carved,high temperature resistance,efficient energy saving
• Heating element uses U-shape MoSi2 rod, heated on two sides, uniform temperature field,TMax 1700°C.
• Durable B-type thermocouple with long service life.

1700℃ Small Benchtop High-temperature Muffle Furnace,Electrical control panel.

• Yudian PID temperature controller, programmable 30 segments, high temperature control accuracy.
• Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function.
• With 485 communication interface(Optional)

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.

Size Comparison
