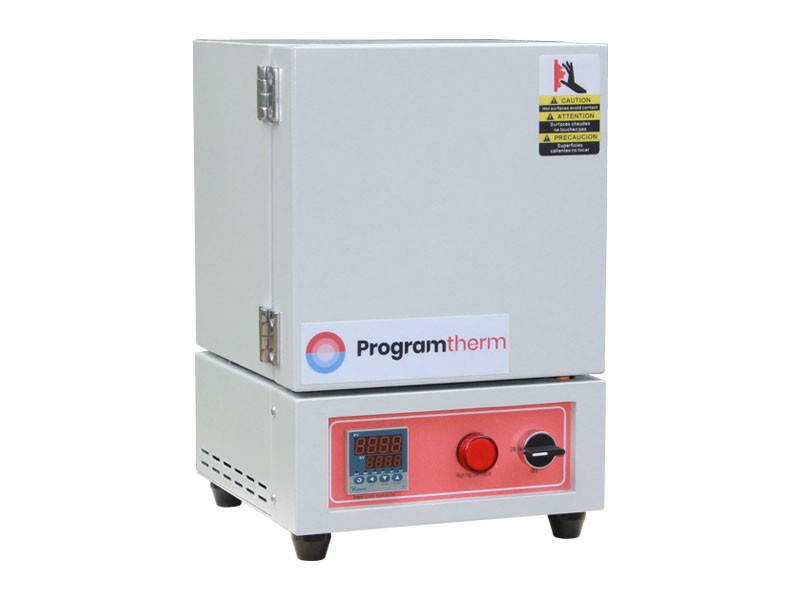

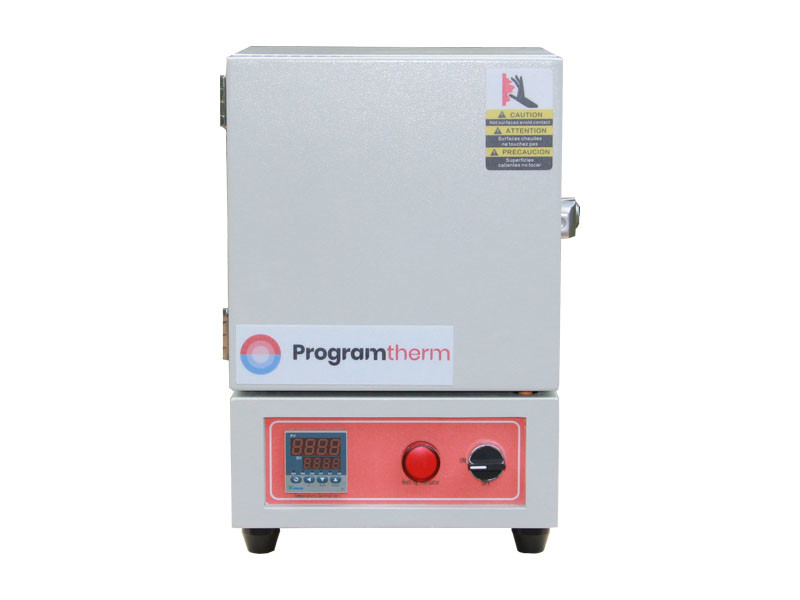

1000°C Mini Laboratory Muffle Furnace

Product Overview

PM L1/10 TMax 1050°C.Adopt carbon steel double housing and beautiful powder electrostatic spraying process. High temperature and corrosion resistant.Chamber lining uses high aluminum 1500# ceramic fiber board,Wet vacuum filter forming, Integral molding.Heating elemengt uses embedded HRE alloy coil wire, heating on three sides, uniform temperature field,fast heating and cooling.Temperature control system uses Shimaden PID temperature controller,phase-shift trigger, thyristor control,programmable 32 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.This small benchtop portable muffle furnace is ideal for university laboratories performing low-volume materials testing, annealing and sintering.

Main Features

• TMax 1050°C
• Carbon steel double housing,two-color high-quality epoxy powder electrostatic spraying,surface temperature below 45°C
• Integrated design, compact design, lightweight structure, saving space
• 1500# ceramic fiber,Wet vacuum filter forming, Integral molding
• Embedded HRE alloy coil wire, heating on three sides, uniform temperature field
• Heating rate: 0℃-25℃/min adjustable
• Durable Type N Thermocouple
• Smart Shimaden PID controller, 32 segments programmable,curve heating and set temperature rate
• Power off, over-temperature, thermocouple breaking and burnout protection
• Siemens electrical components, long service life
• Stable performance, low noise and high safety
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the mini muffle furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

Laboratory Muffle Furnace

• PM L1/10 Laboratory Muffle Furnaceconsists of two parts: furnace body, temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components, reliable quality.
• Export quality, CE certified.

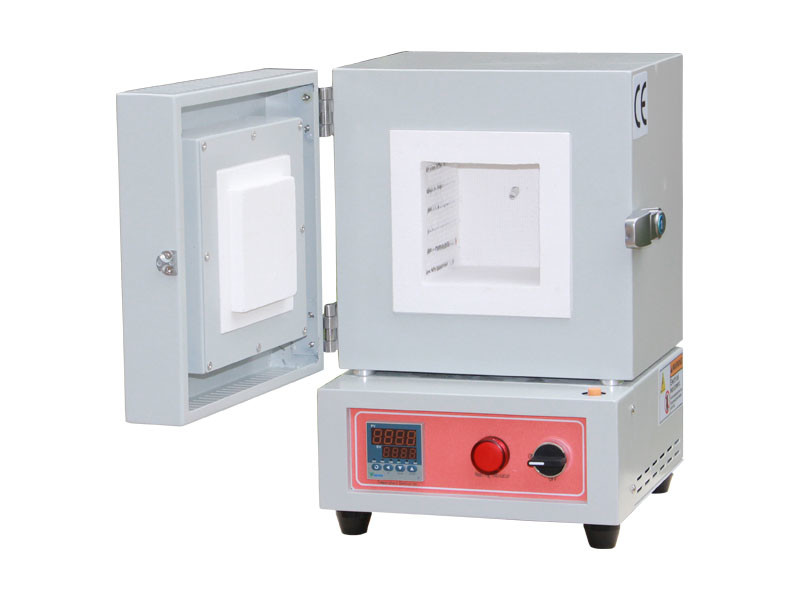

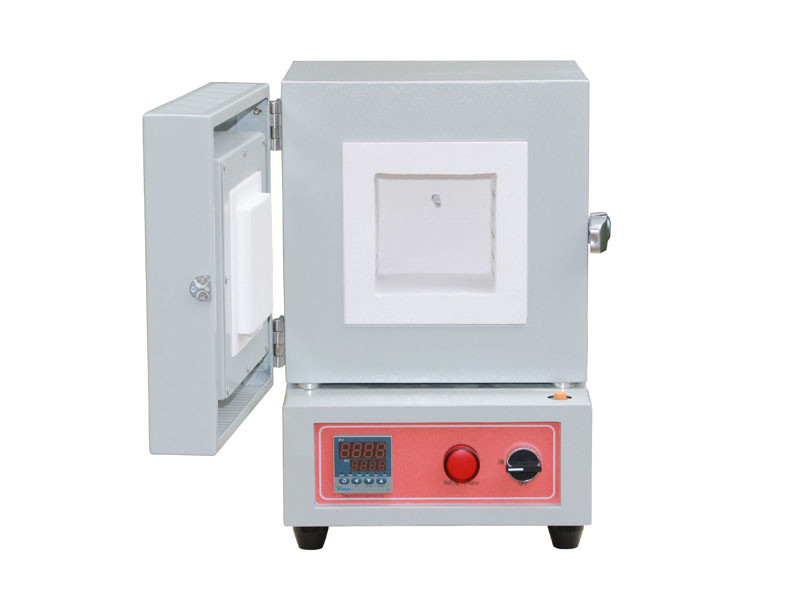

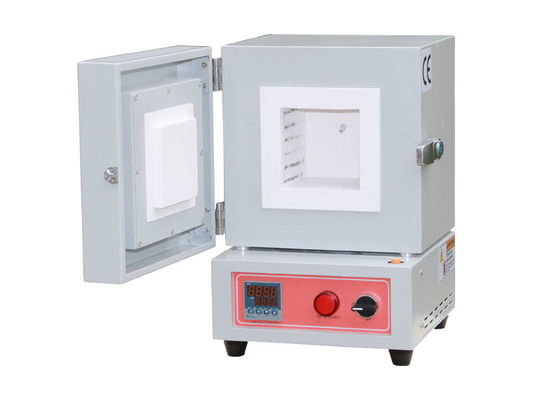

1000°C Laboratory Muffle Furnace,Chamber

• Chamber lining uses 1500#ceramic fiber,Wet vacuum filter forming, Integral molding.Square chamber,chamber walls tight coupling.
• Heating element uses HRE alloy coil wire, heated on three sides, uniform temperature field,TMax 1050°C.
• Durable N-type thermocouple with long service life.

1000℃Laboratory Muffle Furnace,Electrical control panel.

• Shimaden PID temperature controller,phase-shift trigger, thyristor control,programmable 32 segments, high temperature control accuracy.
• Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function.
• With 485 communication interface(Optional)

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.

Size Comparison
