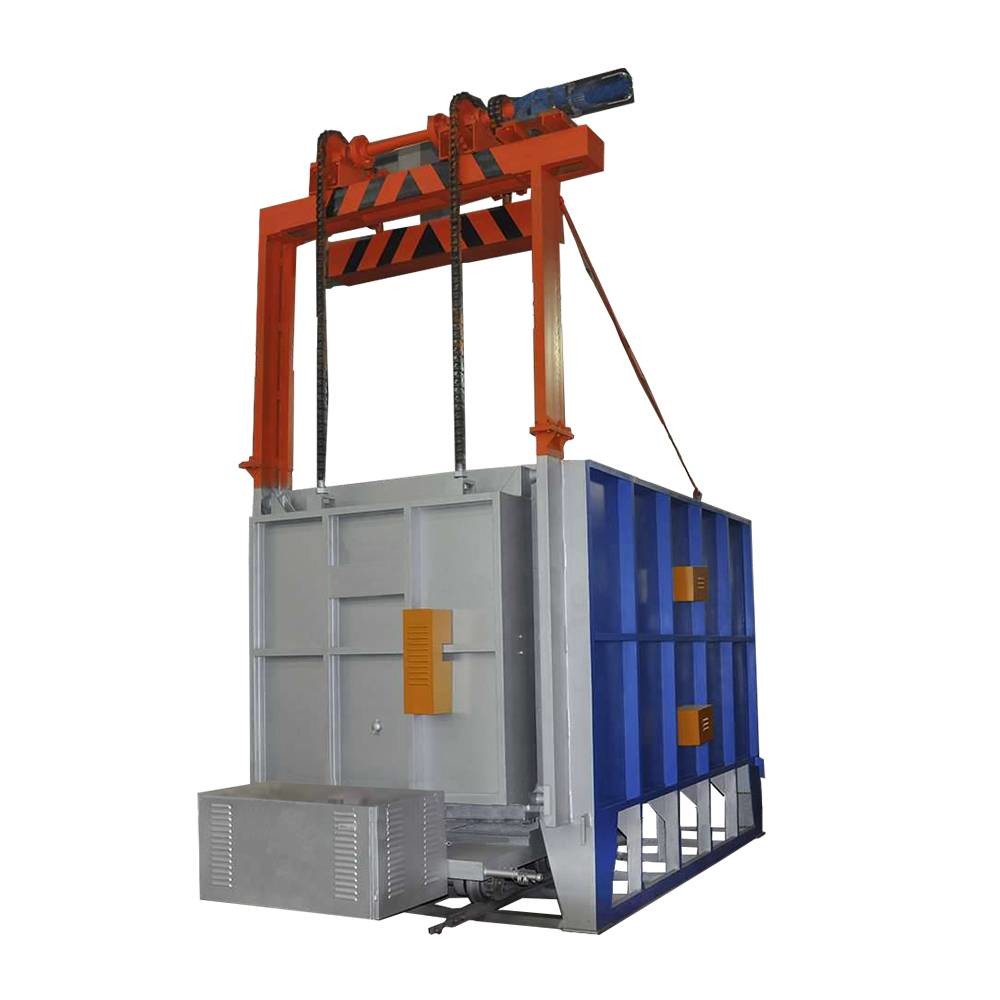

1200℃ Electric Bogie Hearth Furnace

Product Overview

PB L2288/12E is an Electric Bogie Hearth Furnace,consists of furnace body, trolley, temperature control system, etc.Carbon steel housing,excellent strength and durability, good corrosion resistance.JM26# Lightweight high alumina bricks chamber,long-term stable operation in high temperature environment. HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating,uniform temperature field.The trolley can move back and forth to facilitate loading of materials.Shimaden PID controller, 32 segments programmable,high temperature control accuracy.Widely used in small, medium and large industries for various industrial heating and heat treatment processes, such as heating steel, ceramics, etc. (600°C-1150°C). Suitable for annealing of steel, tempering of non-ferrous metals, impurity removal and quenching. In addition, it can be used for baking and sintering of ceramic applications.

Main Features

• TMax 1200℃
• Automatic lift door with hydraulic workstation
• Bottom trolley automatically drives in and out
• Loading capacity 1 ton-5 tons
• SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
• JM26# Lightweight high alumina bricks chamber,arched structure.Alumina fiber insulation layer, good thermal insulation effect
• Self-supporting and long-lived ceiling structure, bricks laid in an arched structure
• Dual zones, independent control. Smart Shimaden PID temperature controller, 32 heating programs, temperature control accuracy ±1℃.
• HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating
• Bogies with flanged wheels run on rails, allowing heavy loads to be moved easily and precisely
• Electric exhaust system for optimal ventilation and rapid cooling
• Heating rate 0℃-20℃/min adjustable
• N-type thermocouple
• High efficiency and energy saving, convenient operation, safe and reliable
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1200°C Electric Bogie Hearth Furnace

• PB L2288/12E Electric Bogie Hearth Furnace consists of three parts: furnace body, trolley and track, temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components,long service life.
• Export quality,ISO,CE certified.

1200°C Electric Bogie Hearth Furnace,Chamber

• JM26# Lightweight high alumina bricks chamber,alumina fiber insulation,work stably for a long time in high temperature environment,good heat preservation effect
• SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
• HRE alloy coil wire heated,mounted on the ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
• N-type thermocouple,long service life.

1200°C Electric Bogie Hearth Furnace,Temperature control system

• Dual zones, independent control.Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy
• Good thermal insualtion, natural cooling, cooling down gently.
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
• Workpieces should be handled with care during loading and unloading, placed firmly. Loaded workpieces must not exceed trolley's working surface.
• Please do not inject flammable, explosive or highly corrosive gases.
