1200℃ 1200L Manual Bogie Type Annealing Furnace

Product Overview

PB L1200/12M is a manual trolley furnace for industrial heat treatment,consists of furnace body, trolley, temperature control system, etc.Carbon steel housing,excellent strength and durability, good corrosion resistance.JM26# Lightweight high alumina bricks chamber,long-term stable operation in high temperature environment. HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating,uniform temperature field.The trolley can move back and forth to facilitate loading of materials.Shimaden PID controller, 32 segments programmable,high temperature control accuracy.Bogie hearth furnaces are mainly used for annealing, quenching or hardening castings or larger parts such as tool steel moulds or semiconductor moulds.(600°C and 1150°C)

Main Features

• TMax 1200℃
• Manual trolley bottom, loading capacity 300KG to 1T, move safely on the track (automatic trolley bottom optional)
• JM26# Lightweight high alumina bricks chamber,arched structure.Alumina fiber insulation layer, good thermal insulation effect
• SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
• Five-sided heating maximizes heat radiation efficiency and provides optimal temperature uniformity
• Dual zones, independent control. Smart Shimaden PID temperature controller, 32 heating programs, temperature control accuracy ±1℃.
• Heating rate 0℃-20℃/min adjustable
• N-type thermocouple,long service life
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1200℃ Manual Bogie Type Annealing Furnace

• PB L1200/12M Manual Bogie Type Annealing Furnace consists of three parts: furnace body, trolley and track, temperature control system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components,long service life.
• Export quality,ISO,CE certified.

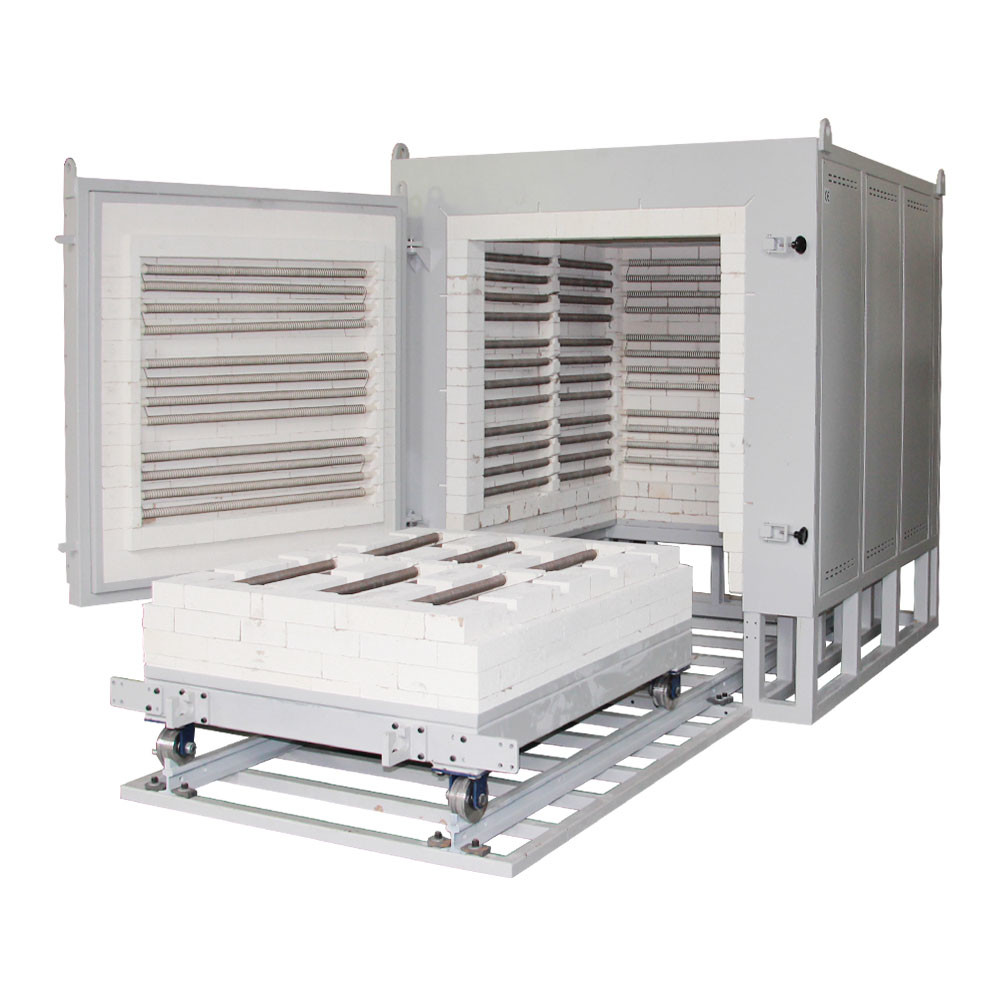

1200℃ Manual Bogie Type Annealing Furnace,Furnace bottom trolley

• Stable Structure, bear heavy weight.
• Excellent load-bearing capacity, load capacities 300KG to 1T, move safely on tracks.
• Trolley bottom is designed to be flexible,accommodate goods of different shapes and sizes.
• Made of wear-resistant and corrosion-resistant materials, stability and durability for long-term use.

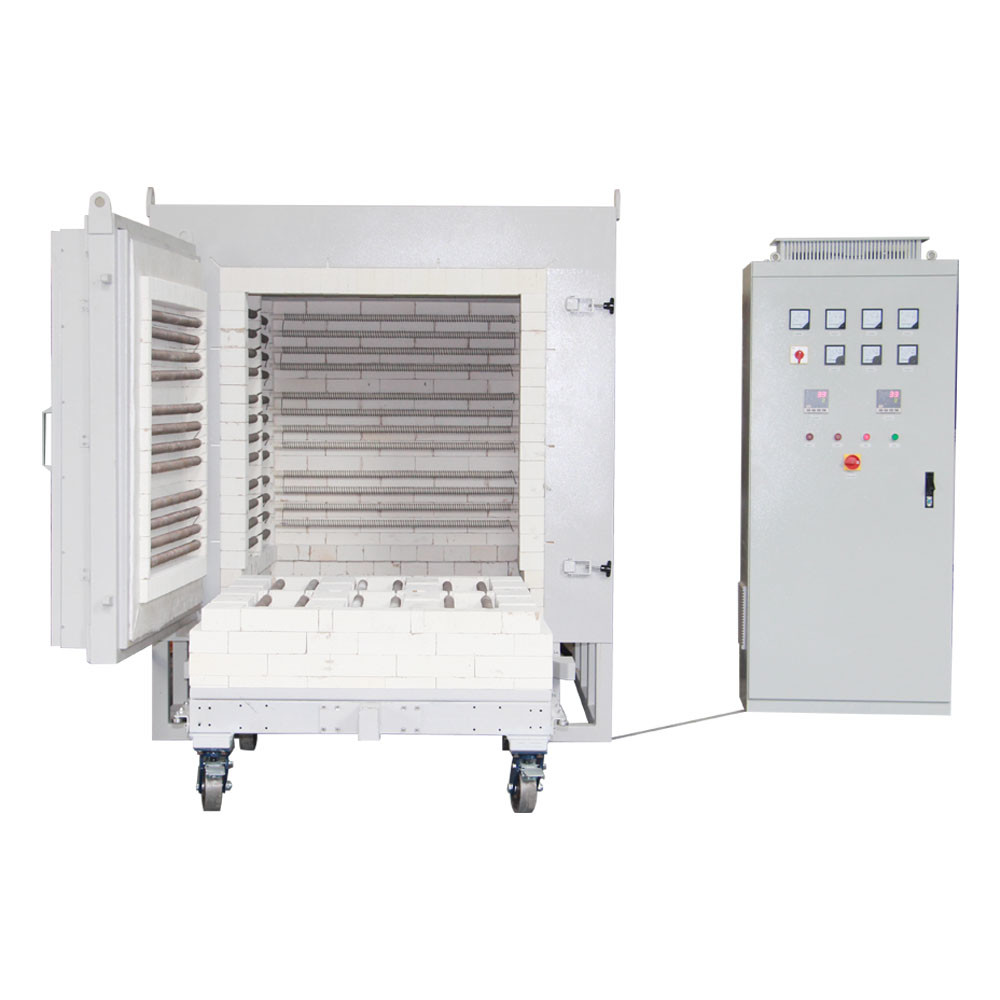

1200℃ Manual Bogie Type Annealing Furnace,Chamber

• JM26# Lightweight high alumina bricks chamber,alumina fiber insulation.Square chamber,chamber walls tight coupling.
• SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
• HRE alloy coil wire heated,mounted on the ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
• N-type thermocouple,long service life.

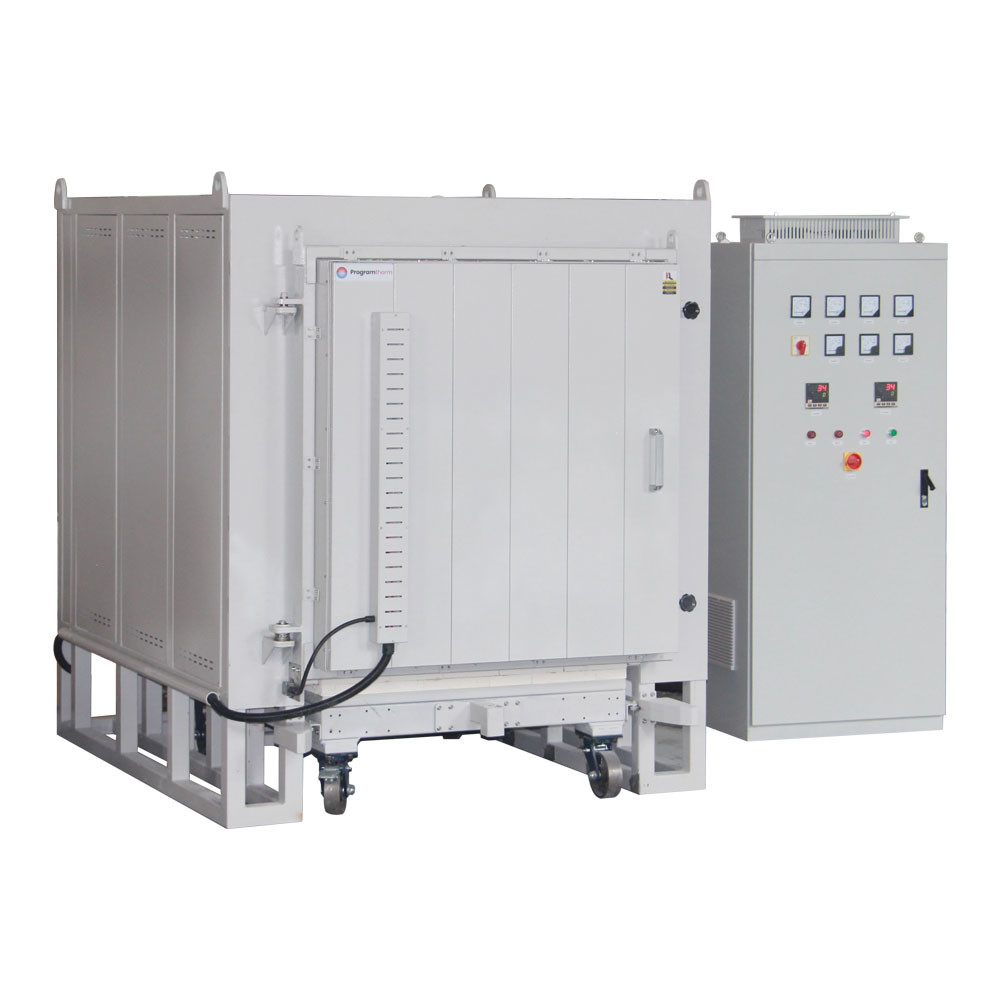

1200℃ Manual Bogie Type Annealing Furnace,Electrical control panel.

• Dual zones, independent control.Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)

• Power off, over-temperature, thermocouple breaking and burnout protection

• Temperature self-tuning function.

• With 485 communication interface (Optional)

Heating and cooling of 1200℃ Manual Bogie Type Annealing Furnace

• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
• Good thermal insualtion, natural cooling, cooling down gently.
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
• Workpieces should be handled with care during loading and unloading, placed firmly. Loaded workpieces must not exceed trolley's working surface.
• Please do not inject flammable, explosive or highly corrosive gases.

Size Comparison
