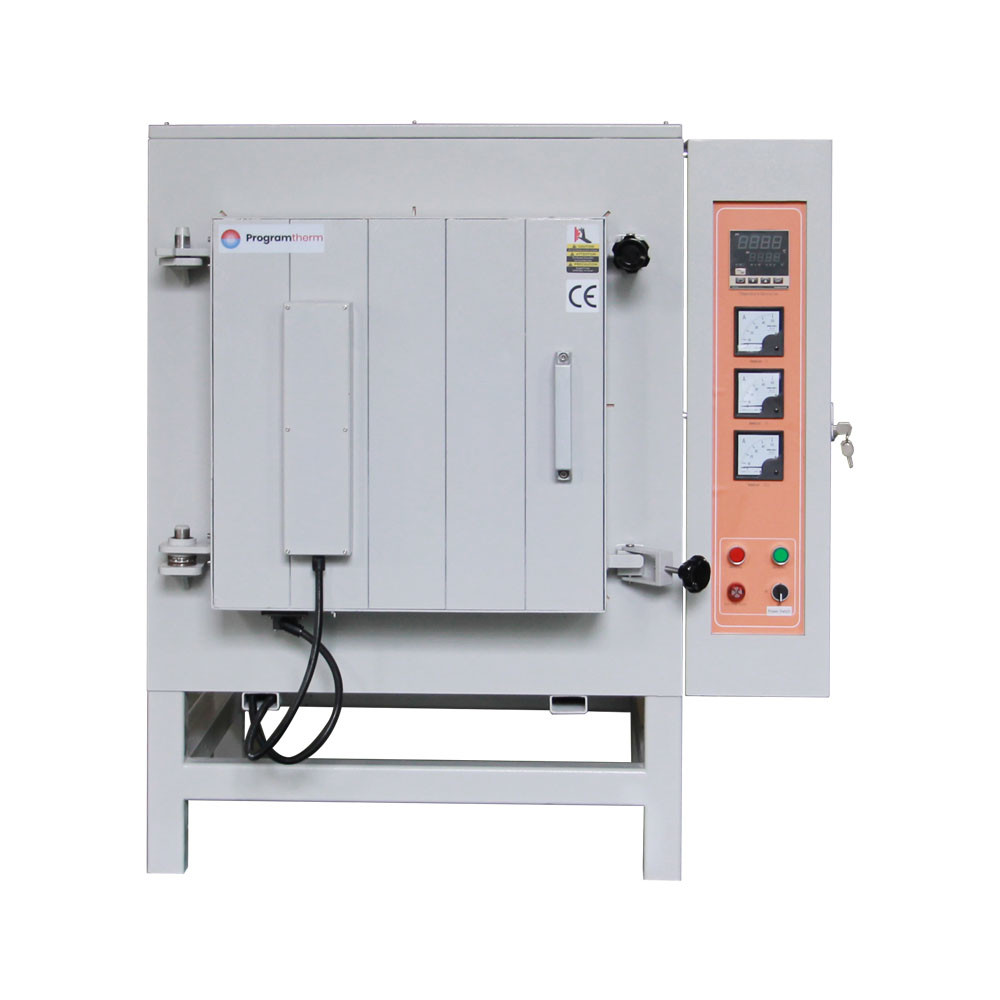

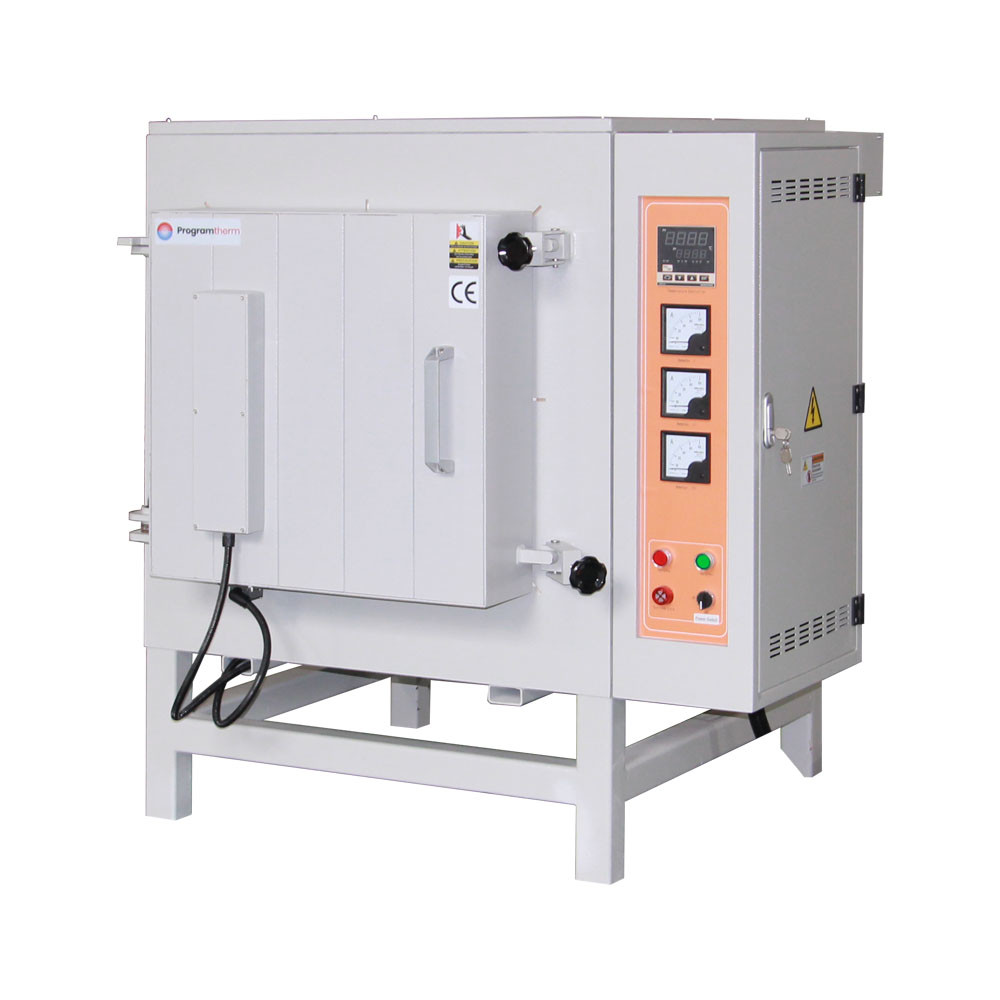

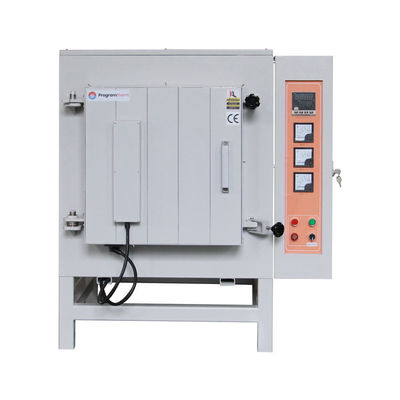

1200℃ 96L Chamber Furnace

Product Overview

PC L96/12 is a standard chamber furnace for laboratory use.Carbon steel double housing.Small, lightweight cubic chamber.Ceramic box with embedded heating wire.Chamber lining uses Mitsubishi raw materials high alumina bricks,high temperature resistance.Heating element uses HRE alloy coil wire,mounted on ceramic tube,5 sides heating,N-type thermocouple. Smart Shimaden PID controller, 32 segments programmable,high temperature control accuracy.Suitable for a wide range of heat treatment applications on a wide range of materials, the ideal tool for preparing small-sized samples in materials research and daily use in dental laboratories.

Main Features

• TMax 1200℃
• Squre chamber, self-developed new arched furnace top, equip an exhaust piping system.
• Mitsubishi raw materials high alumina bricks chamber,good high temperature resistance,reduce energy loss
• HRE alloy coil wire heated,mounted on the ceramic tube,5-sided heating,uniform temperature field
• Equip two N-type thermocouples, one for temperature testing,one for protection
• Heating rate 0℃-20℃/min adjustable
• Smart temperature control system 32 segments programmable
• Siemens electrical components, long service life
• Power off, over-temperature, thermocouple breaking and burnout protection
• CE certification

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the chamber furnace if temperature is outside of acceptable range or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace chamber operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Details

1200°C Chamber Furnace

• PC L96/12 Chamber Furnace consists of three parts: furnace body,temperature control system and air-cooling system.
• Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
• Siemens electrical components,long service life.
• Export quality,ISO,CE certified.

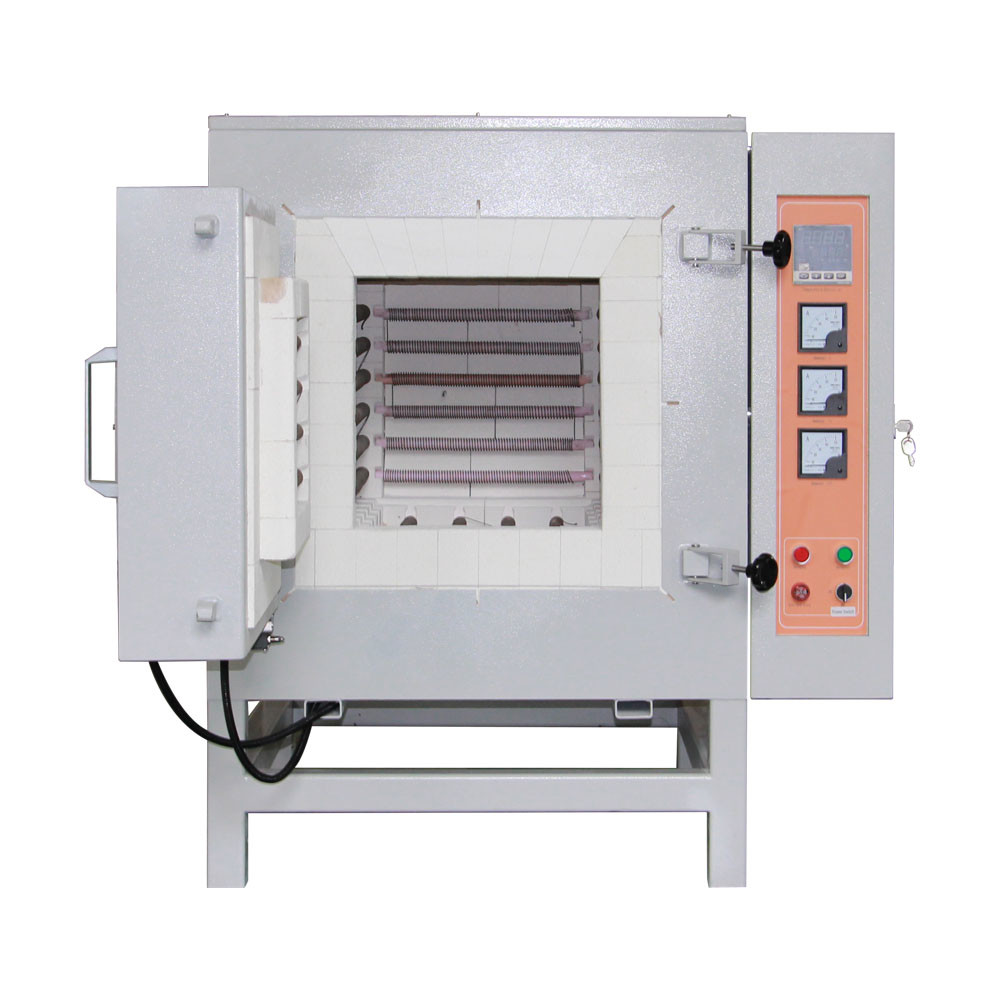

1200°C Chamber Furnace, Chamber

• Chamber lining uses Mitsubishi raw materials high alumina bricks.Square chamber,chamber walls tight coupling.
• Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
• Equip two N-type thermocouples, one for temperature testing,one for protection.

1200°C Chamber Furnace,Electrical control panel.

• The control panel and furnace are integrated design.Consists of temperature control instrument,ammeter,voltmeter, function buttons and alarm indicators.
• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
• Power off, over-temperature, thermocouple breaking and burnout protection
• Temperature self-tuning function
• With 485 communication interface (Optional)

Heating and cooling of 1200℃ high temperature Chamber Furnace

• Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
• Good thermal insualtion, natural cooling, cooling down gently.
• 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded

Technical Specifications

Application Notes

• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
• Please do not inject flammable, explosive or strong corrosive gases without safety measures.

Size Comparison
