Muffle Oven Furnace for Laboratory up to 1400°C

Product Overview for 1400C Muffle Furnace

Muffle Oven Furnace allows fast heating and cooling, features quality ceramic fiber insulation with powerful heating elements, low energy consumption, intelligent PID temperature controller with max temperature up to 1800 degree C. Muffle oven furnace is ideal for heat treating, reacting studies, sintering processes, and ceramic firing.

Main Features

• Tmax 1400 °C
• Dual steel housing with fan cooling for low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Powerful Silicon carbide as heating elements
• Intelligent PID temperature controller with programmable 32 segments
• Long life type S thermocouple
• CE certified, standard

Safety Measures

• The muffle oven furnace with built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product Gallery

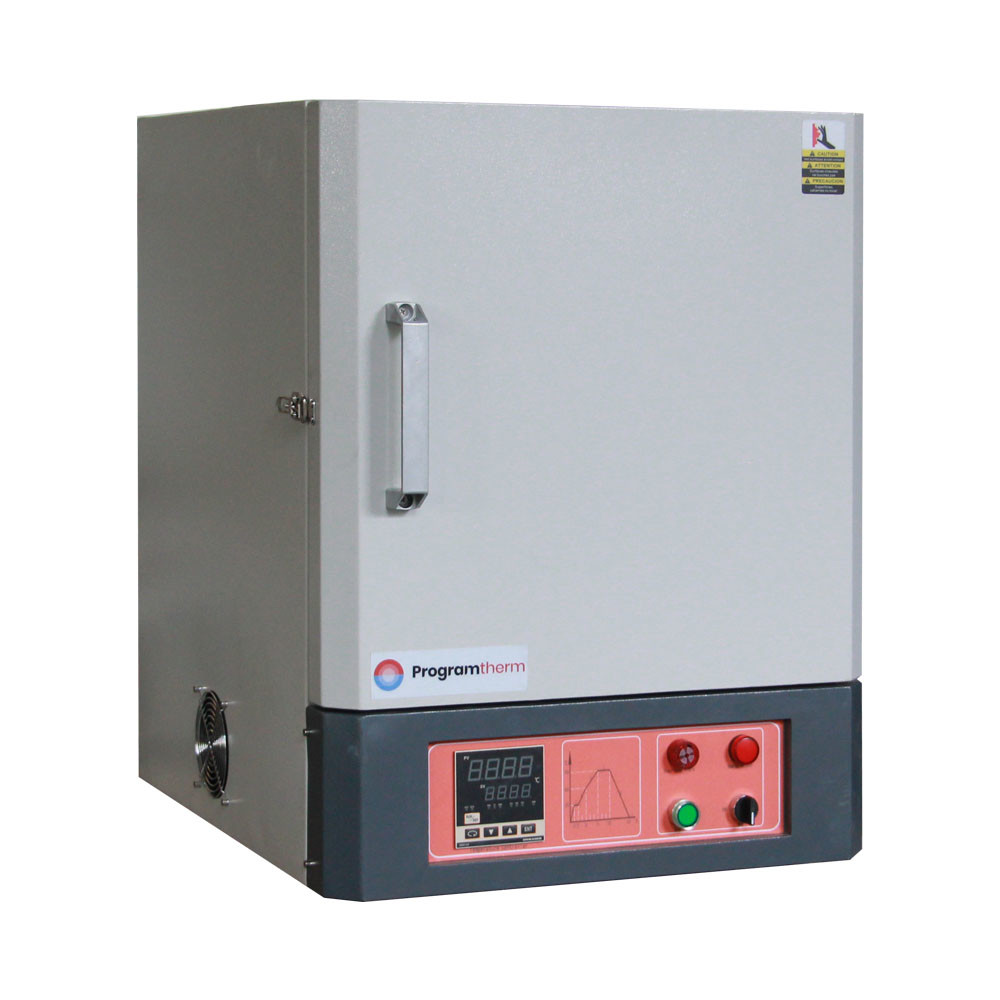

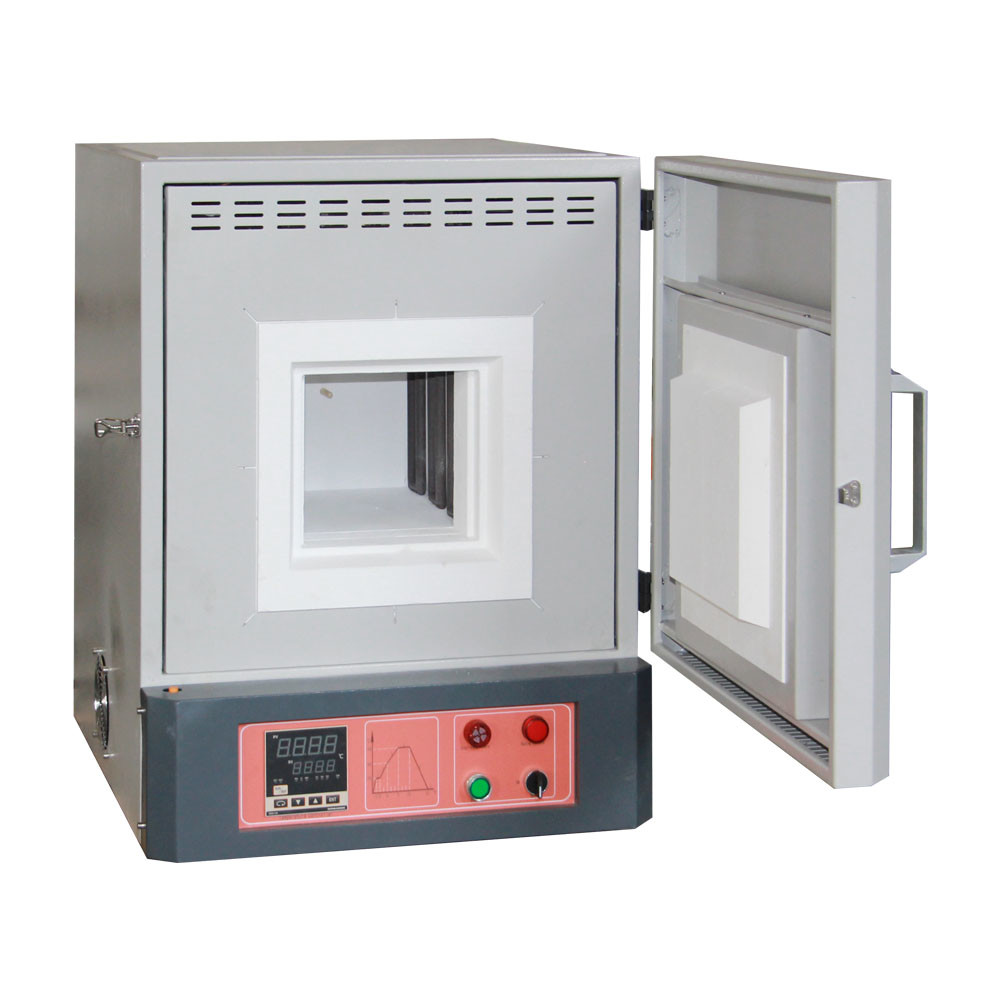

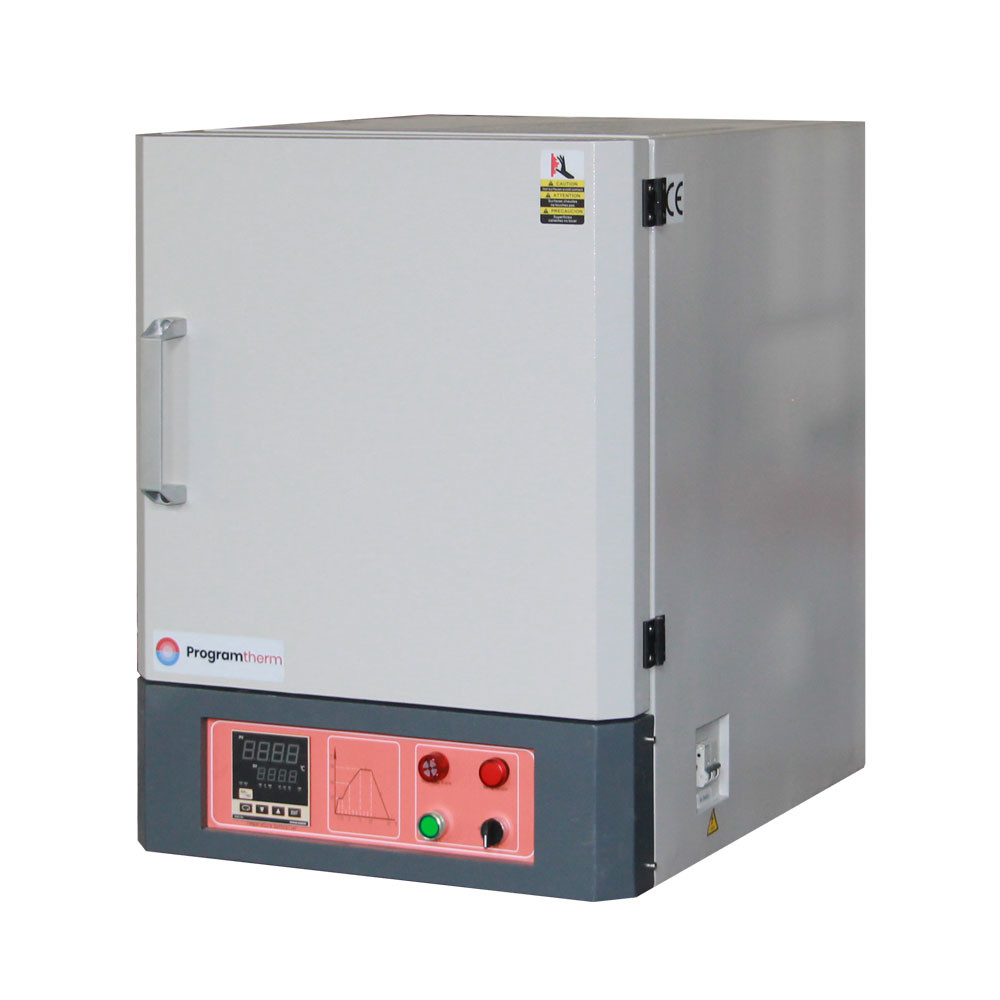

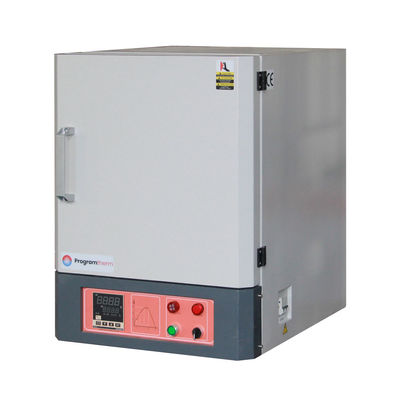

Front View for High Temperature Muffle Furnace 1400 degree C

Front view for 1400 degree C High Temperature Tube Furnace

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this muffle furnace 1200 C without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
