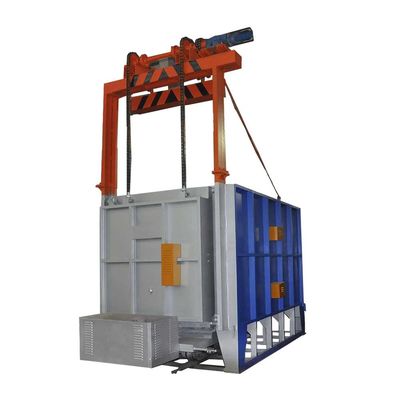

Industrial Bogie Hearth Furnace 1200°C For A Wide Range Of Industrial Heating And Heat Treatment Processes

Industrial Bogie Hearth Furnace 1200°C

Overview

Car bottom furnace is used for a wide range of industrial heating and heat treatment processes in small, medium and large industries. Car bottom furnace are suitable for the annealing of iron and steel, the tempering and removing of non-ferrous metals as well as the hardening. Furthermore, they are used for the baking and sintering of ceramic applications. The trolley could be driven out and in of the furnace chamber (manually or motorized), the car bottom furnace is accessible from all sides which facilitates the loading and unloading. We, Programtherm design and produce car bottom furnaces as per your needs, and programtherm bogie furnaces makes your heat treatment more successful.

Main Features

• Tmax 1200 °C
• Automatic lifting upward door driven with hydraulic working station
• Automatic sliding bottom
• Two indepent heating zones control for optimal temperature uniformity in the working space
• Self-supporting and long-life ceiling construction with bricks laid in arched construction
• Loading capacity ranges from 1 tons to 5 tons as per needs
• Multi-layer insulation consisting of high alumina lightweight refractory bricks backed by alumina fiber insulation
• Heating elements mounted on support ceramic tubes provide for free radiation and long service life.
• Bogie heating via blade contacts with rear side when driven in, bottom heating protected by Silicon carbide board on the bogie providing level stacking surface.
• Bogies with flanged wheels running on rails for easy and precise movement of heavy loads
• Precise Shimaden PID controller with programmable 32 segments
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
