Vertical Lifting High Temperature Muffle Furnace 1200C

Product Overview for Small Benchtop Vertical Lifting Muffle Furnace

Muffle Furnace 1200C features Vertical lifting door, box type ceramic chamber with embeded wire type, heating from three sides with Tmax 1200°C. Precise Shimaden PID controller, programmable 32-segment, fast heating and cooling. The Muffle Furnace 1200 C is an ideal tool for heat treating, reacting studies, sintering processes, and ceramic firing with maximum energy saving.

Picture illustration

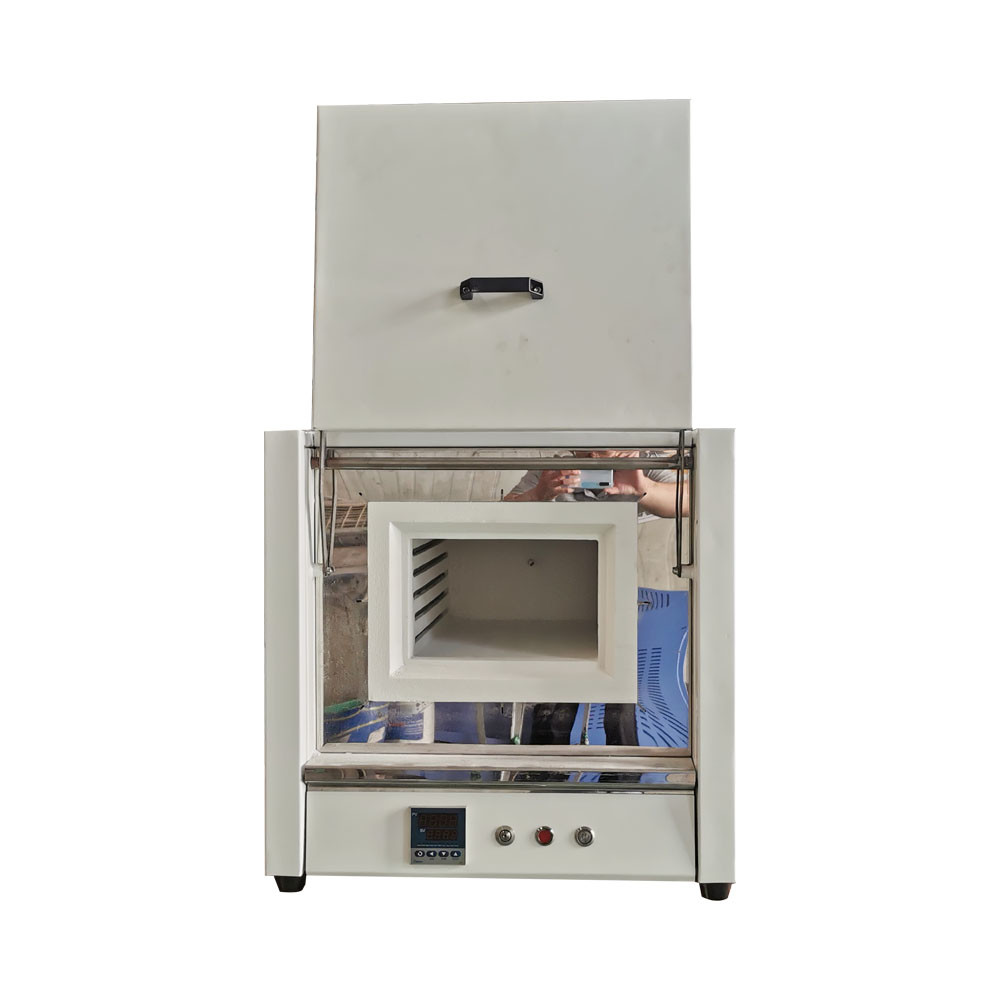

Small Benchtop ​Vertical lifting muffle furnace

Main Features

• Tmax 1200 °C
• Furnace applys for ashing, ignition, determination, analysis
• Dual steel housing with fan cooling for low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Embedded heating elements on three sides give an improved temperature gradient
• Programmable muffle furnace with PID temperature controller 32 segments
• Type N thermocouple. Equips two pcs, one for temperature testing, the other for protection
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
