6KW Laboratory Muffle Furnace For Loss On Ignition / LOI Electric Muffle Furnace

Product Overview for Loss On Ignition Test Muffle Furnace

Loss On Ignition Test Muffle Furnace 1200 C features box type ceramic chamber with embeded wire type, heating from three sides with Tmax 1200°C. Precise Shimaden PID controller, programmable 32-segment, fast heating and cooling. The Muffle Furnace 1200 C is an ideal tool for heat treating, reacting studies, sintering processes, and ceramic firing with maximum energy saving.

Main Features

• Tmax 1200 °C
• Furnace applys in lab, school, research institute, box type, benchtop
• Dual steel housing with fan cooling for low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Embedded heating elements on three sides give an improved temperature gradient
• Programmable muffle furnace with PID temperature controller 32 segments
• Type N thermocouple. Equips two pcs, one for temperature testing, the other for protection
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

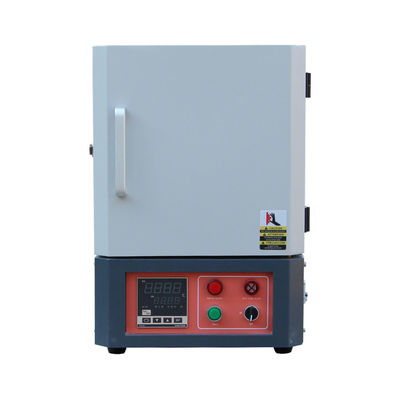

Front view for Programmable Muffle furnace 1200 degree C

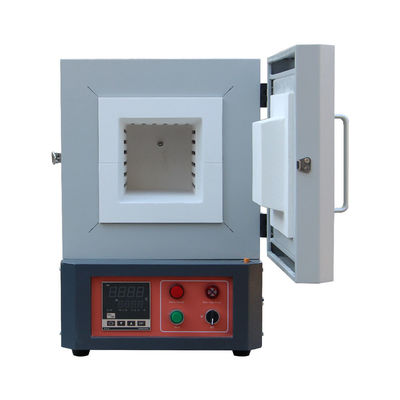

Details for Programmable Muffle furnace 1200 degree C

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
