Light Duty Chamber Type Furnace Electric Resistance Furnace 1200C

Overview

Chamber Furnace is a daily used heat treatment equipment in many labs, features a small, light duty, cubical furnace chamber for multiple heat treatment applications for various materials. Programtherm provides a wide range of standard laboratory chamber furnaces with capacity up to 1000L, temperature up to 1700°C.

Main Features

• Tmax 1200 °C
• Cubical furnace chamber
• Rugged Construction with fan cooling for low surface temperature
• Furnace applys in lab, school, research institute, box type, benchtop
• Carbon steel housing with fan cooling for low surface temperature
• High alumina brick chamber with mounted heating wire on five sides ensure uniform temperature
• Programmable muffle furnace with PID temperature controller 32 segments
• Type N thermocouple. Equips two pcs, one for temperature testing, the other for protection
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

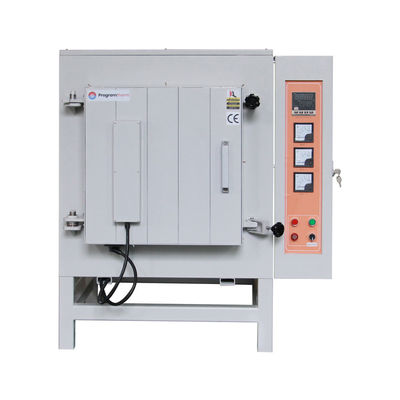

Front view for Programmable laboratory chamber furnace 1200 degree C

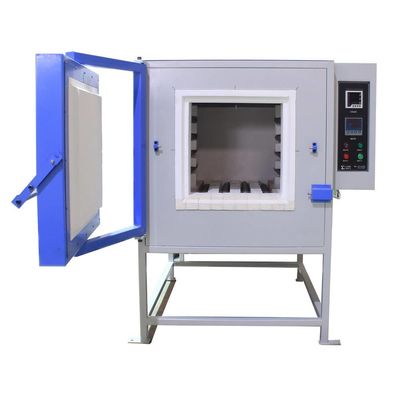

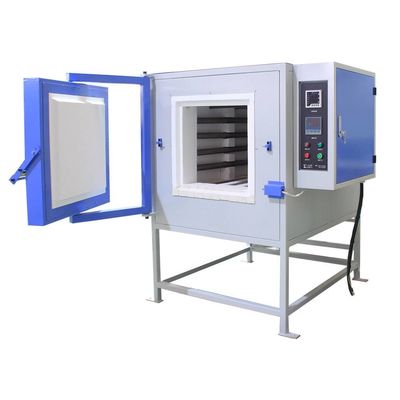

Details for Laboratory Chamber furnace 1200 degree C

Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this programmable muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating

Size Comparison
