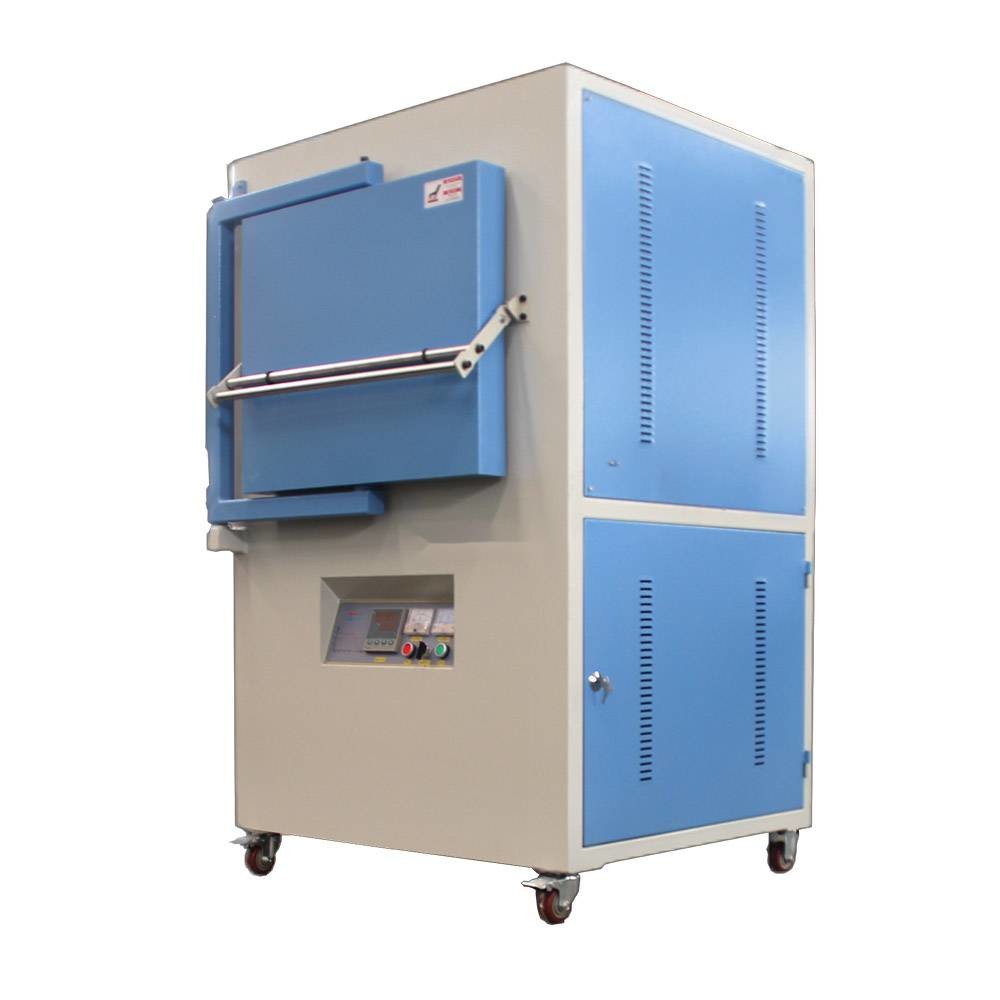

MoSi2 Rod Heated Industrial Chamber Furnace Up To 1700C W300xD400xH300mm

Overview for High Temperature Muffle Furnace

High temperature lab muffle furnace adopts high alumina fiber insulated chamber, low energy consumption, powerful heating elements with temperature up to 1700 degree C. The high temperature muffle furnace is ideal for heat treating, reacting studies, sintering processes, and ceramic firing in labs and industrial.


Main Features

• Tmax 1700 °C
• Furnace applys in lab, school, research institute, box type, benchtop
• Dual steel housing with fan cooling for low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Embedded heating elements on two sides
• High temperature muffle furnace with PID temperature controller 30 segments
• Type B thermocouple
• CE certified, standard

Ramping Dwelling and Cooling Curves for 1700C High Temperature Muffle Furnace


Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

Front view for High Temperature Muffle furnace 1700 degree C

Hight Temperature Muffle furnace 1700 degree C with MoSi2 rod heaters


Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this high temperature muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Size Comparison
