Ceramic Muffle Furnace 1300 Degree C

Overview for High Temperature Muffle Furnace

High temperature lab muffle furnace 1400 degree C adopts 1600# high alumina fiber insulated chamber, low energy consumption, powerful heating elements Silicon carbide rods with Max temperature up to 1400 degree C. The high temperature muffle furnace is ideal for heat treating, reacting studies, sintering processes, and ceramic firing in labs and industrial.


Main Features

• Tmax 1400 °C
• Furnace applys in lab, school, research institute, box type, benchtop
• Dual steel housing with fan cooling for low surface temperature
• Fiber-insulated chamber for maximum temperature stability and uniformity
• Embedded heating elements on two sides
• High temperature muffle furnace with PID temperature controller 30 segments
• Type S thermocouple
• CE certified, standard

Safety Measures

• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot

Product illustration

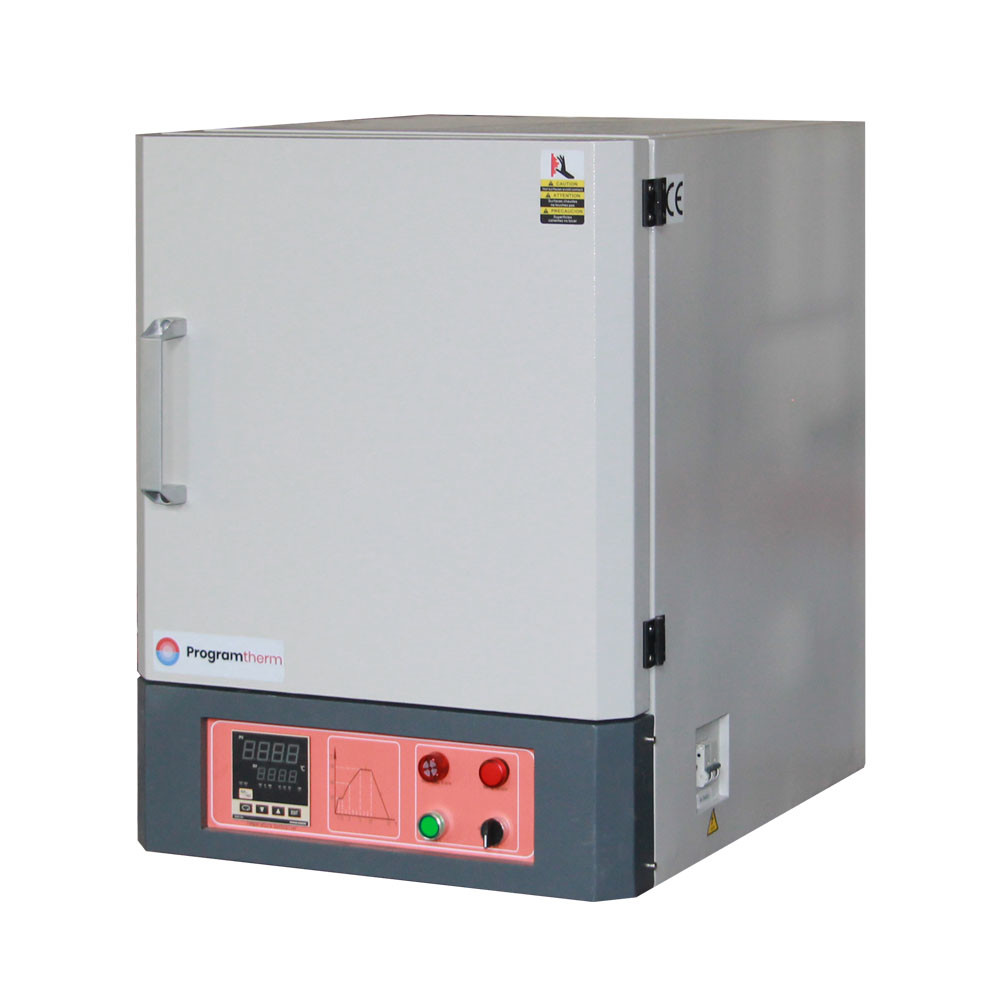

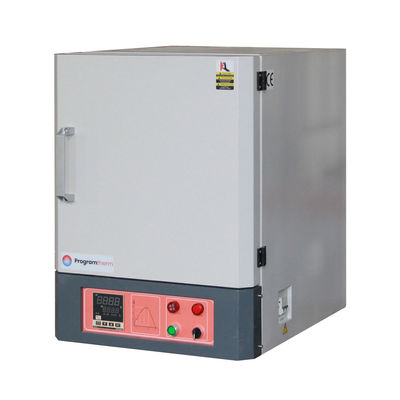

Front view for High Temperature Muffle furnace 1400 degree C

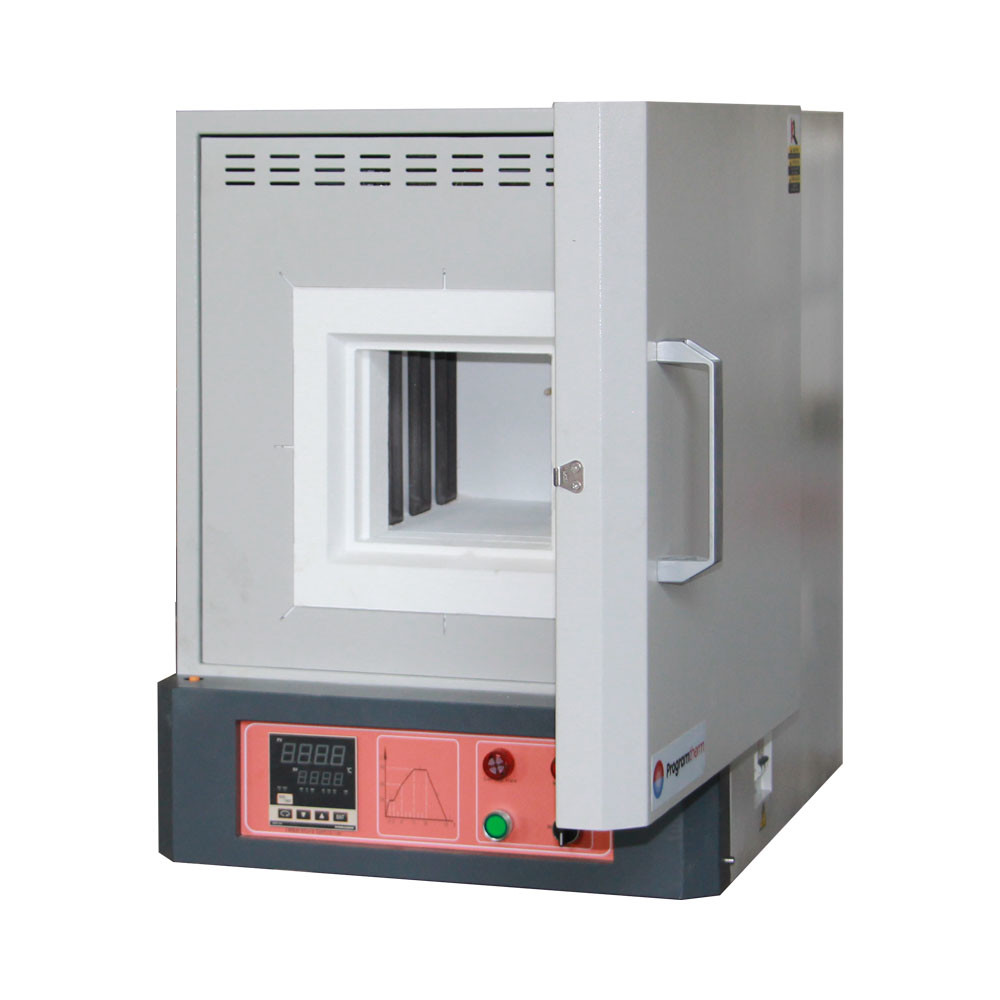

Hight Temperature Muffle furnace 1400 degree C with ceramic fireproof block

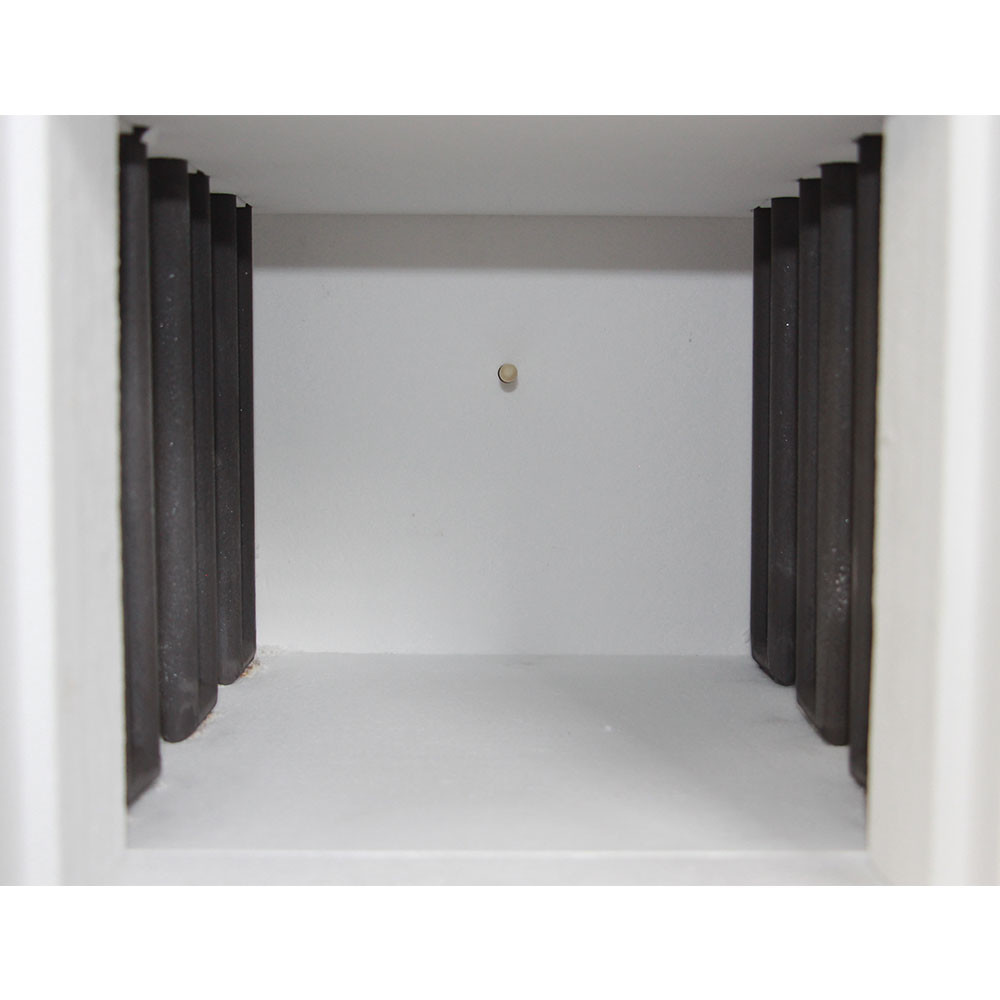

Hight Temperature Muffle furnace 1400 degree C with SiC rod heaters


Technical Specifications

Application Notes

• However, toxic or explosive gases that may generate from the sample during the heating are not recommended for use with this high temperature muffle furnace without necessary safety controls and supervision.
• Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.

Size Comparison
