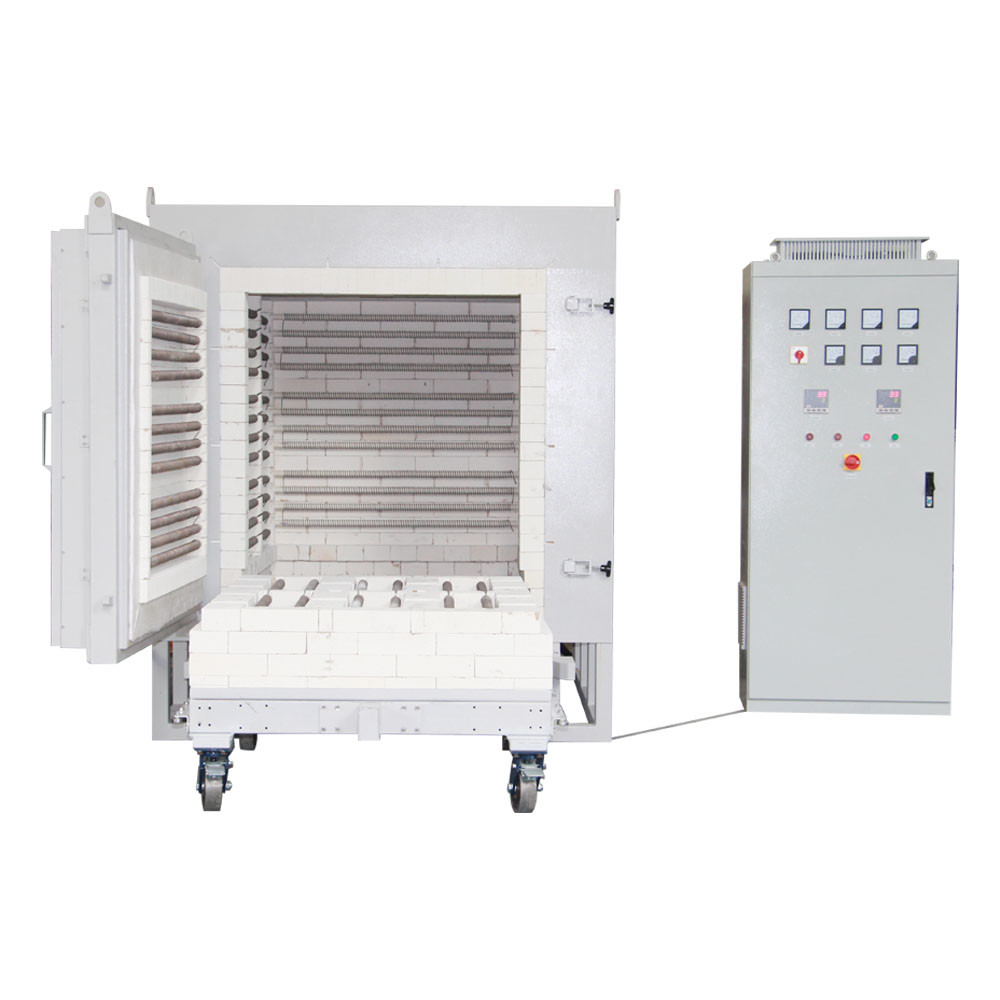

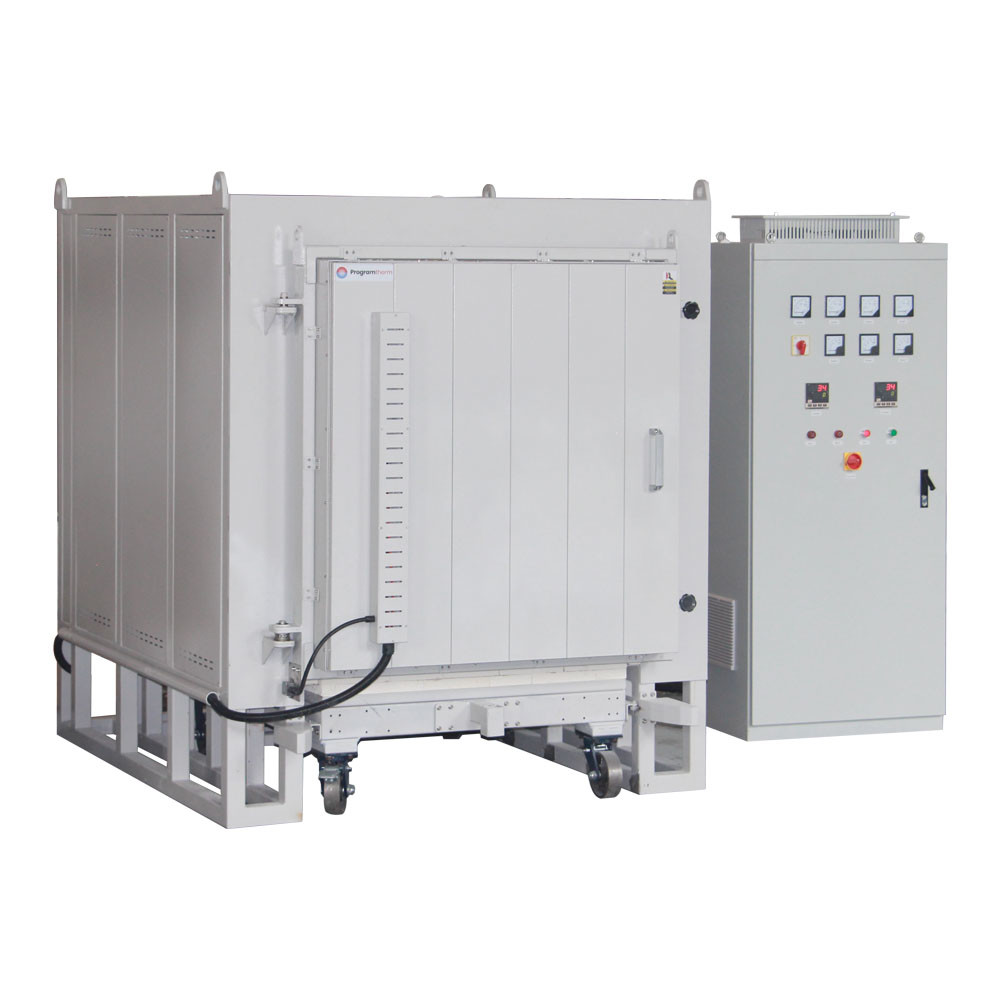

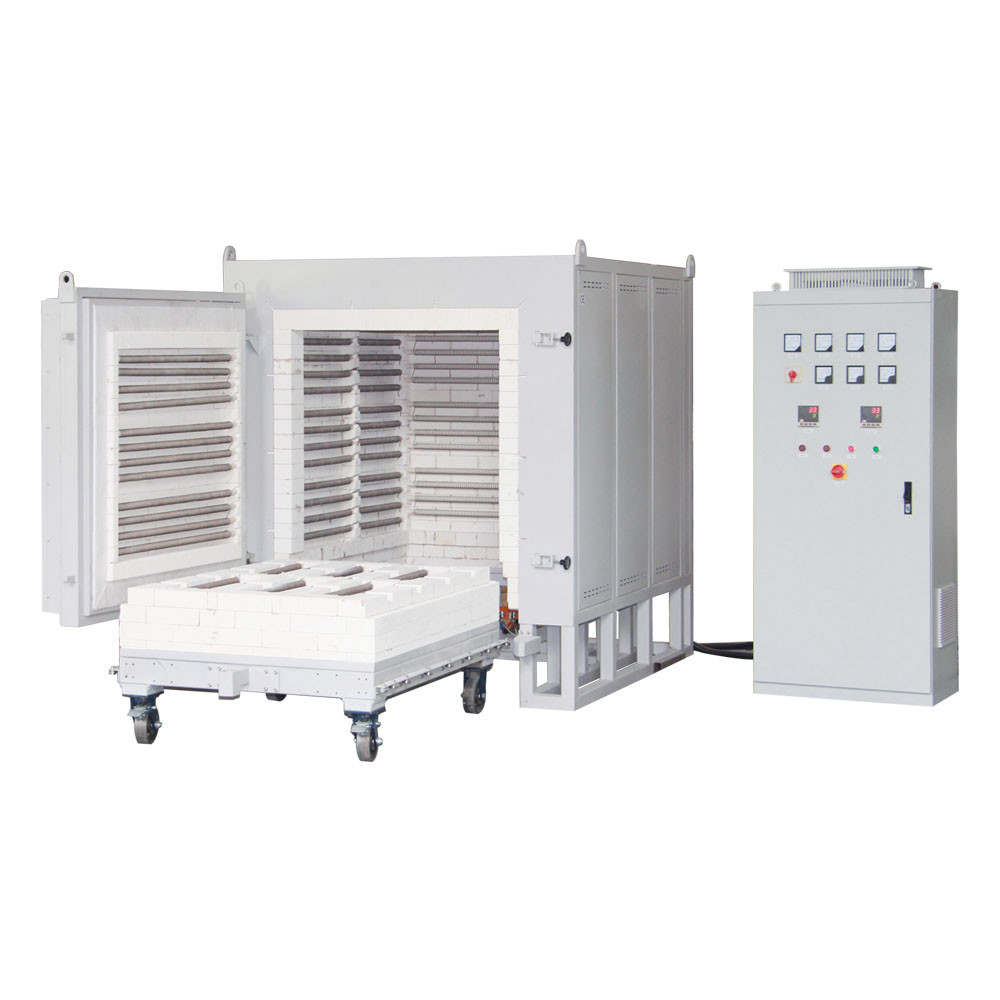

Bogie Hearth Furnace, also known as Car Bottom Furnace, is a type of Bogie Hearth Furnace used for annealing processes, The furnace bottom could be pull out smothly along the track, Free access in front of the furnace allows for a simplified and clear charging. It is equipped with high-quality heating elements - heating wire mounted on the ceramic tube, which heats from five heating sides. The thermocouple type is N, and it is designed with safety measures, such as over-temperature protection and interlock, to ensure safety during the annealing process. Moreover, the Bogie Hearth Annealing Furnace is certified by CE and comes with a warranty of 18 months. With the unique vault ceiling and safety measures, the Bogie Hearth Annealing Furnace will be your ideal choice for annealing, tempering, hardening processes.
| Property | Details |
|---|---|
| Furnace Name | 1250 degree C industrial bogie hearth furnace |
| Usage | Annealing, Tempering, Hardening |
| Chamber Material | Multi-layer Insulation With Light-weight Refractory Bricks |
| Construction | Carbon Steel Housing With Exhaust Air Outlet, Vaulted Ceiling, Manual Sliding Bottom |
| Heating Elements | Heating Wire Mounted On The Ceramic Tube, Heating From Five Heating Sides |
| Certificate | CE |
| Heating Type | Electrically Heated |
| Safety Measures | Over-temperature Protection, Interlock |
| Load Capacity | 1 Ton |
| Chamber Size | D1200 W1000 H1000mm |
The Programtherm PB L1200/12M Traversing Bogie Furnace is a kind of Bogie Hearth Annealing Furnace, which is widely used for the annealing, tempering and hardening, and especially applied for the Shuttle Kiln process. The furnace is made of multi-layer insulation with light-weight refractory bricks and the load capacity is up to 2 ton. It has CE compliance and comes with polywood case for packaging. The electric heated furnace is equipped with safety measures, such as over-temperature protection and interlock. With high efficiency and easy operation, the Programtherm PB L1200/12M Traversing Bogie Furnace can be used in all kinds of important industries, such as metallurgy, foundry, etc.
Bogie Hearth Furnace technical support and services include:
Packaging and Shipping for Bogie Hearth Furnace
The Bogie Hearth Furnace is packaged in a wooden crate and shipped by truck or rail.
The crate is designed to protect the furnace from damage during transportation. It is constructed from high-quality wood and reinforced with metal strapping. Inside the crate, the furnace is secured with foam padding and bubble wrap. The crate is clearly labeled with contents and handling instructions.
The truck or rail carrier should be notified of the size and weight of the crate, as well as the time and destination of the shipment.
A: The Brand Name is Programtherm.
A: The Model Number is PB L1200/12M.
A: The Bogie Hearth Furnace is manufactured in China.
A: Yes, the Bogie Hearth Furnace is CE Compliance.
A: The Packaging Details of the Bogie Hearth Furnace is Polywood Case.
