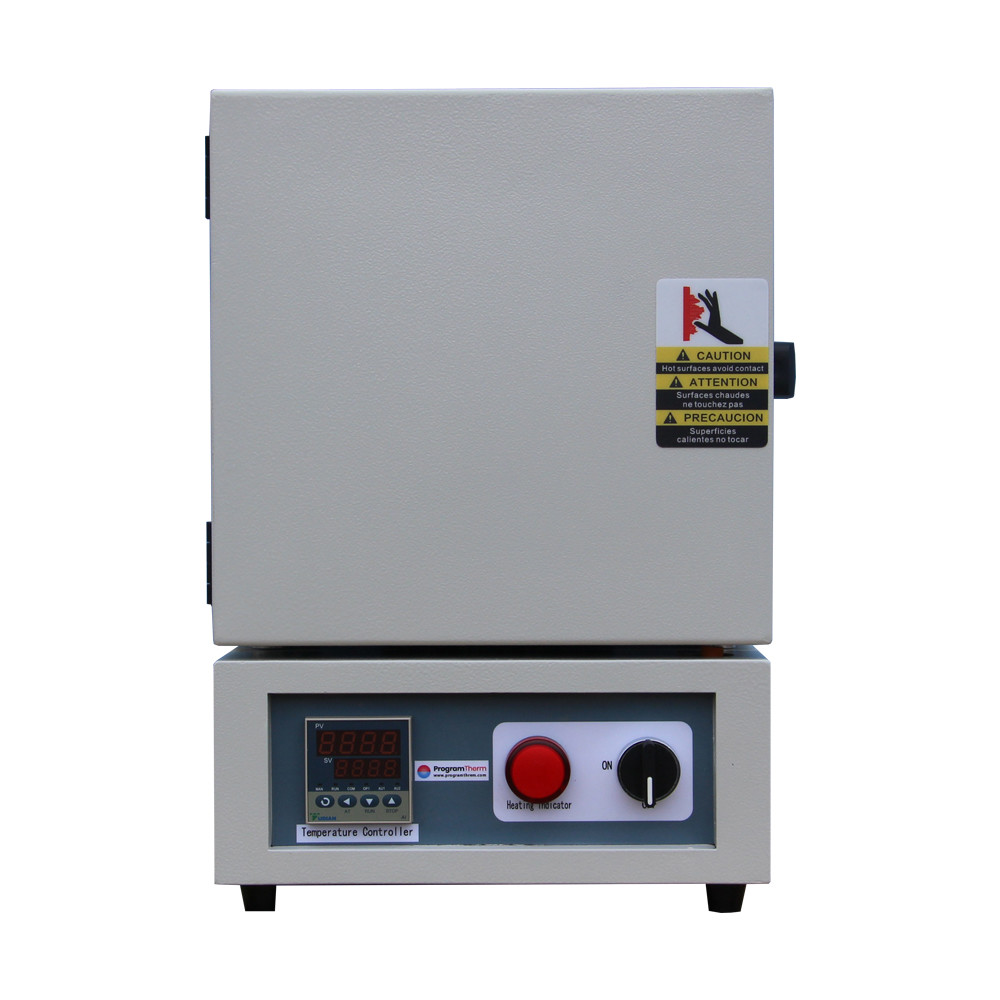

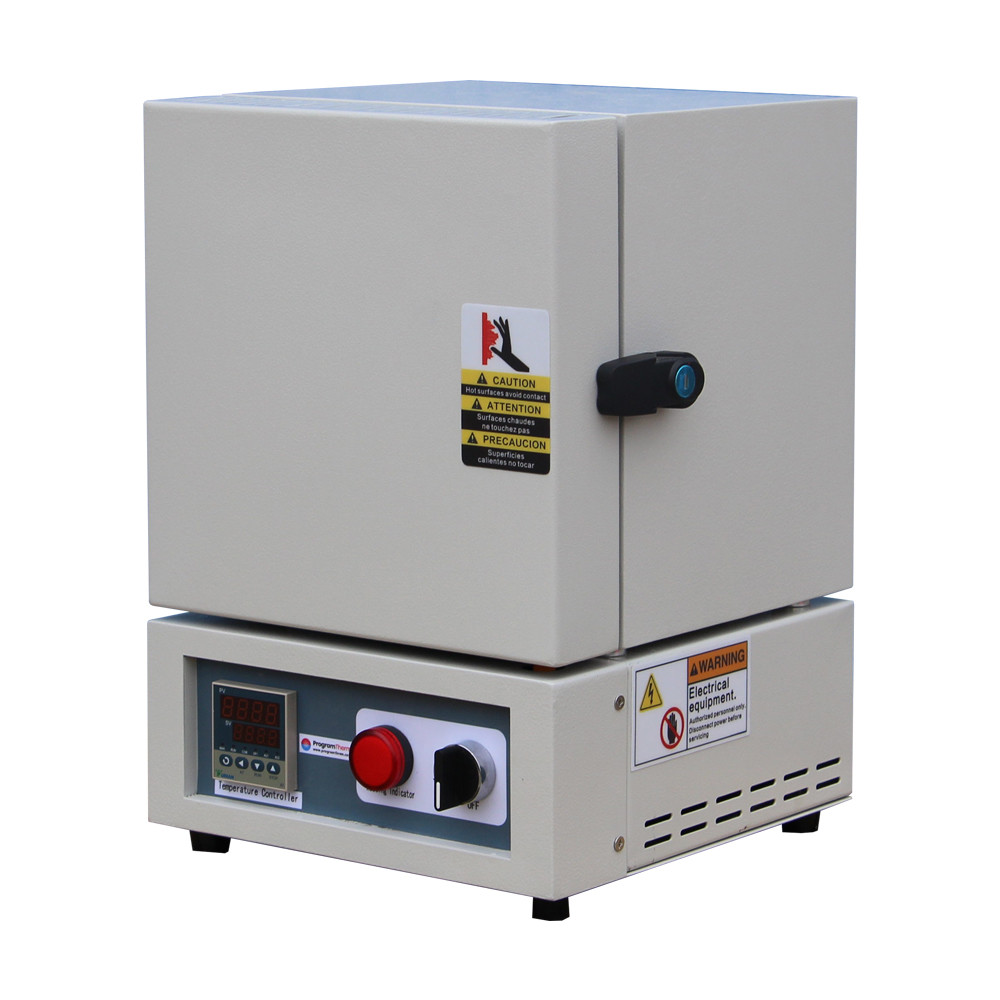

High Temperature Laboratory Mini Muffle Furnace is a compact and portable muffle furnace designed for benchtop operations. It offers superior temperature control up to 1000°C and is equipped with embedded heating wire and a 30-segment PID programmable controller. The heating chamber is made of ceramic fiber which ensures excellent thermal insulation and good temperature uniformity. The lightweight design of 10kg makes it easy to use and transport. The High Temperature Muffle Furnace is ideal for a variety of laboratory and industrial applications, including heat treatment, brazing, sintering, annealing, ashing and melting.
| Parameter | Value |
|---|---|
| Usage | Heat treatment on small metal parts, ceramics, ashing etc. |
| Heating Element | Embedded HRE Heating Wire |
| Power | 1.2KW |
| Safety Protection | Over-temperature Protection |
| Heating Rate | 0.1°C - 20°C/min |
| Temperature Range | RT - 1000°C |
| Thermocoupe type | N |
| Temperature Control | PID Programmable 30 Segments |
| Weight | 10Kg |

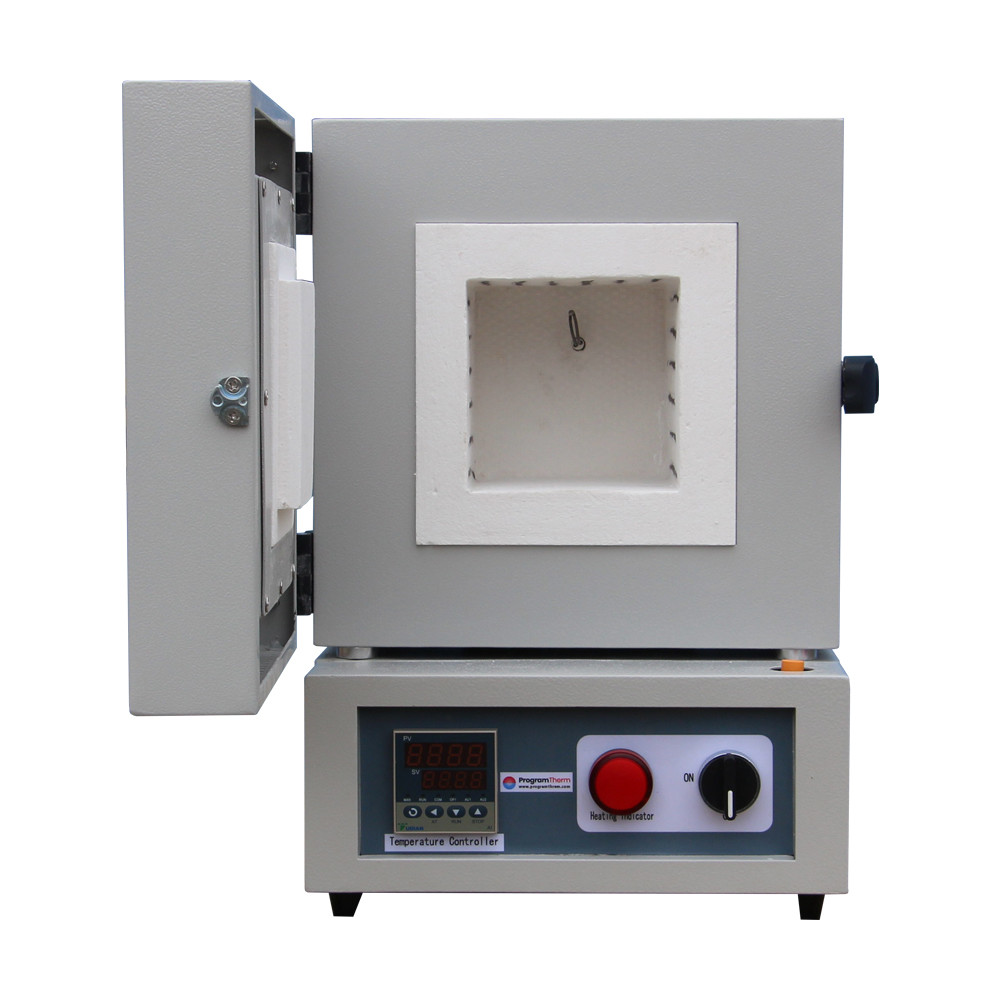

| Chamber Material | Ceramic Fiber Lining Board |
| Chamber Size | 100 X 100 X 100mm |
| Voltage | 110V-240V |
ProgramTherm PM L1/10 High Temperature Muffle Furnace is a small, compact, and portable muffle furnace that is designed to meet the requirements of various industrial and laboratory applications. This muffle furnace is made of lightweight and durable ceramic fiber chamber that is 100 X 100 X 100mm in size, and it has a heating rate of 0.1°C - 20°C/min. It is equipped with a 1.2KW power source and weighs only 10Kg. This programmable muffle furnace ensures precise temperature control for fast, safe, and efficient applications. It is ideal for research laboratories and industrial applications that require high temperature environment. It is also suitable for metal and ceramic sintering, and other related heat treatment processes.
This mini muffle furnace from ProgramTherm is perfect for small laboratory applications and is one of the most compact muffle furnaces available in the market. It is ideal for applications that require high temperature, such as sintering, annealing, melting, and heat treatment. It has a small chamber size of 100 x 100 x 100mm and a weight of 10Kg. It is a great choice for those who need a small muffle furnace.
We offer comprehensive technical support and service for our High Temperature Muffle Furnace. Our team of experienced engineers will assist you in the installation and commissioning of your furnace. We can also provide on-site service and remote technical support to ensure that your furnace is operating optimally.
Our service includes:
We are committed to providing quality support for our customers. If you have any questions or concerns, please do not hesitate to contact us.
The High Temperature laboratory mini Muffle Furnace is packaged in a cardboard box filled with foam. The foam helps to ensure the product is protected during shipping and prevents any damages from occurring. The box is then placed in a larger box for shipping. If necessary, the box can be further secured using bubble wrap or other protective materials. All packaging materials are recyclable and should be disposed of responsibly.
The shipping company selected for the mini Muffle Furnace will depend on the customer's preference. We offer both ground and air shipping, with delivery typically occurring within 5-7 business days for domestic orders and 10-14 business days for international orders.
